Product CatalogPart Number
VM3SAQF1802L01
Manufacturer
CIT Relay and SwitchDescription
SWITCH LIMIT SPST-NO 10A 125V
Datasheet
DatasheetPackage
-
In Stock
40,330 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VM3SAQF1802L01
VM3SAQF1802L01
lmages are for reference only.Payment Methods
Delivery Services
Switch SPST-NO Chassis Mount
Quick Inquiry
VM3SAQF1802L01
Specifications
| Category | Switches - Limit Switches - |
| Manufacturer | CIT Relay and Switch |
| Series | VM3S |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Base Product Number | VM3SA |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 10A (AC), 6A (DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 36 V |
| Actuator Type | Lever, Roller |
| Mounting Type | Chassis Mount |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Features | - |
| Operating Force | 140gf |
| Release Force | 50gf |
| Operating Position | 0.807" (20.50mm) |
| Pretravel | 0.100" (2.5mm) |
| Differential Travel | 0.050" (1.3mm) |
| Overtravel | 0.039" (1.0mm) |
| Operating Temperature | -40°C ~ 120°C |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | VM3SAQF1802L00 | VM3SAQF1802L02 | VM3SAQF1802L03 | VM3SAQF1802L04 |
| Manufacturer | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SWITCH LIMIT SPST-NO 10A 125V | SWITCH LIMIT SPST-NO 10A 125V | SWITCH LIMIT SPST-NO 10A 125V | SWITCH LIMIT SPST-NO 10A 125V |
| Series | VM3S | VM3S | VM3S | VM3S |
| Packaging | Tray | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products
VM3SAGF1802L00
CIT Relay and Switch
VM3SAGF1802L01
CIT Relay and Switch

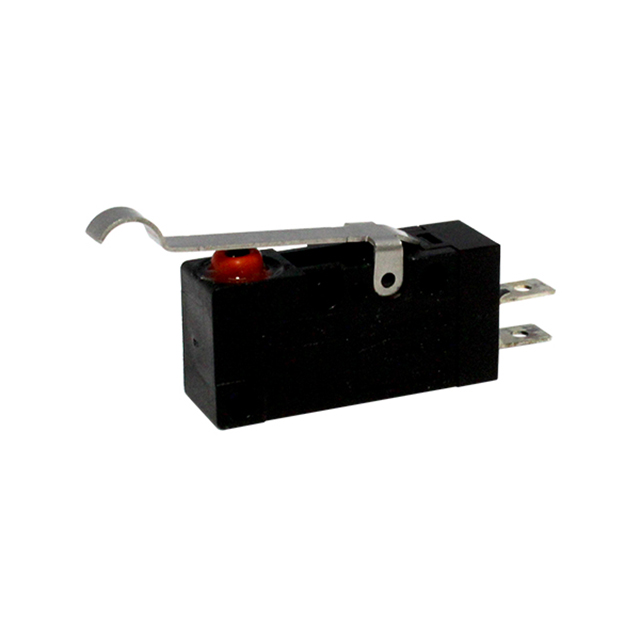

VM3SAGF1802L02
CIT Relay and Switch
VM3SAGF1802L03
CIT Relay and Switch
VM3SAGF1802L04
CIT Relay and Switch
VM3SAGF1802L06
CIT Relay and Switch
VM3SAGF1803L00
CIT Relay and Switch
VM3SAGF1803L01
CIT Relay and Switch
VM3SAGF1803L02
CIT Relay and Switch
VM3SAGF1803L03
CIT Relay and Switch
VM3SAGF1803L04
CIT Relay and Switch

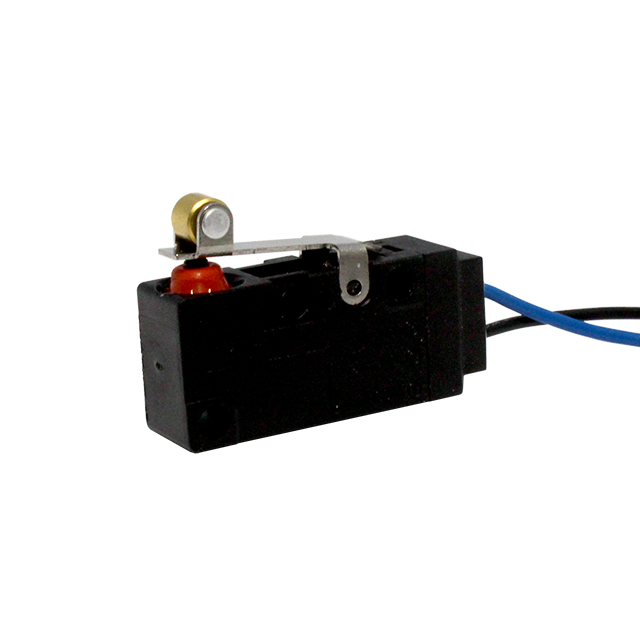

VM3SAGF1803L06
CIT Relay and Switch

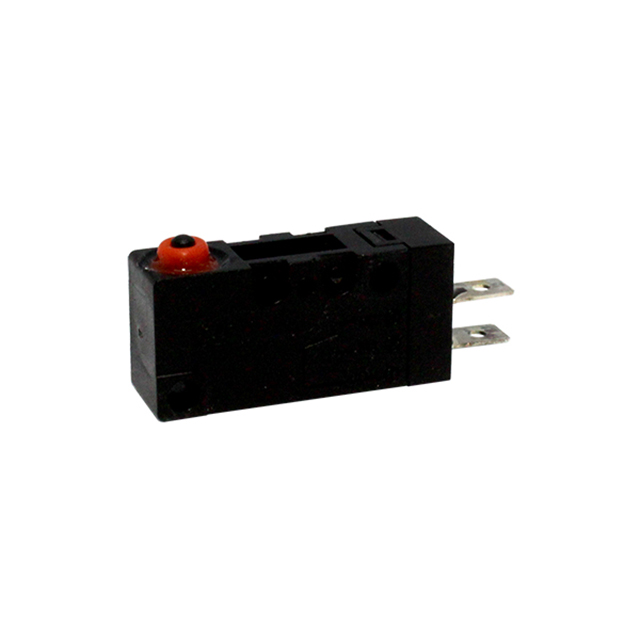

VM3SAGF3002L00
