VN820-B513TR
lmages are for reference only.VN820-B513TR
IC PWR DRIVER N-CHAN 1:1 P2PAK
DatasheetP2PAK (4 Leads + Tab)
79,628 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:1 N-Channel 9A P2PAK
VN820-B513TR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | STMicroelectronics |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS non-compliant |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 9A |
| Rds On (Typ) | 40mOhm (Max) |
| Input Type | Non-Inverting |
| Features | Auto Restart, Status Flag |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | P2PAK |
| Package / Case | P2PAK (4 Leads + Tab) |
| Base Product Number | VN820 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | VN820-11-E | VN820-12-E | VN820-B5 | VN820-E |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC PWR DRVR N-CH 1:1 5PENTAWATT | IC PWR DRVR N-CH 1:1 5PENTAWATT | IC PWR DRIVER N-CHAN 1:1 P2PAK | IC PWR DRVR N-CH 1:1 5PENTAWATT |
| Series | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Packaging | Tube | Tube | Tube | Tube |
Recommended Products

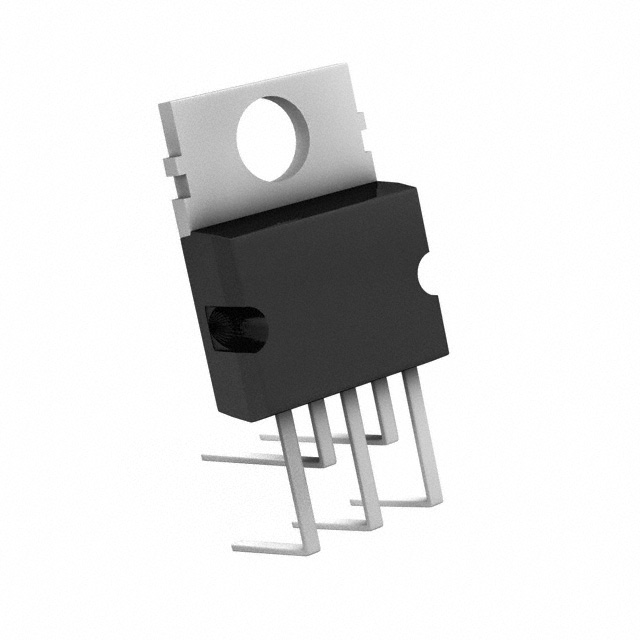

.jpg "VN820(011Y)")
