Power Switch/Driver 1:1 N-Channel 1.6A 7-HEPTAWATT
VND05B
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | STMicroelectronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 6V ~ 26V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.6A |
| Rds On (Typ) | 200mOhm (Max) |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | 7-HEPTAWATT |
| Package / Case | Heptawatt-7 (Vertical, Bent and Staggered Leads) |
| Base Product Number | VND05 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

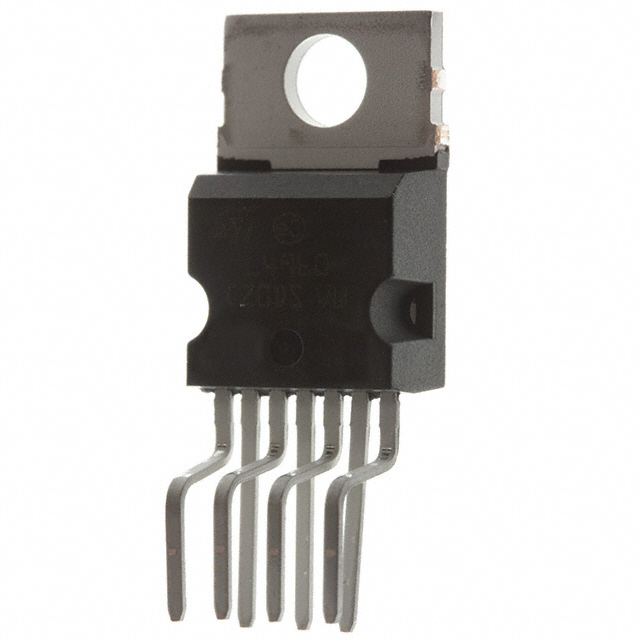

| Part Number | VND05B-11-E | VND05B-E | VND05BSP | VND05BSP-E |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

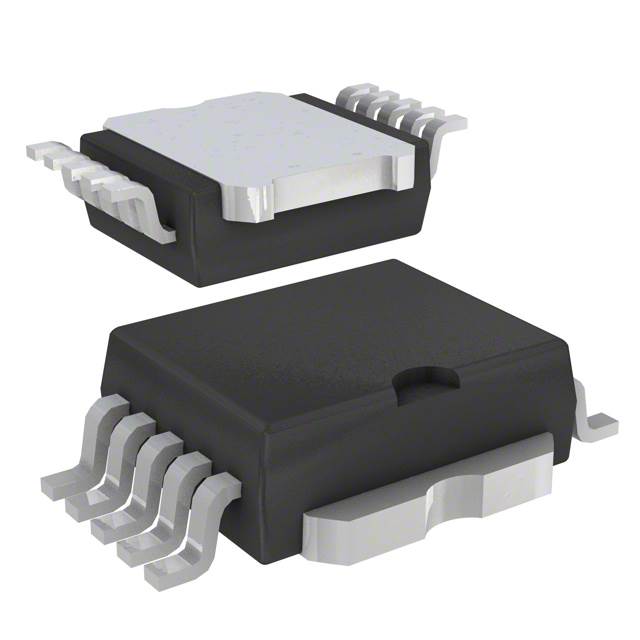

| Description | IC PWR SMART SSR N-CH HEPTAWATT7 | IC PWR SMART SSR N-CH HEPTAWATT7 | IC PWR DRIVER N-CHAN 1:1 PWRSO10 | IC PWR DRIVER N-CHAN 1:1 PWRSO10 |
| Series | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Packaging | Tube | Tube | Tube | Tube |
