VNTBR12Z2001SR
lmages are for reference only.VNTBR12Z2001SR
VE-NET, 1X2, RA, UNSEAL, Z CODE
Datasheet-
36,240 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Through Hole, Right Angle 4 position
VNTBR12Z2001SR
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | Ve-Net |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.094" (2.40mm) |
| Overall Contact Length | - |
| Insulation Height | 0.541" (13.75mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA10T), Nylon 10T |
| Features | Board Guide |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Blue |
| Current Rating (Amps) | 1.5A |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Applications | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | VNTBR11Z2001SR | VNTBR22Z2001SR | VNTBR22Z2002SR | VNTBR23Z2001SR |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

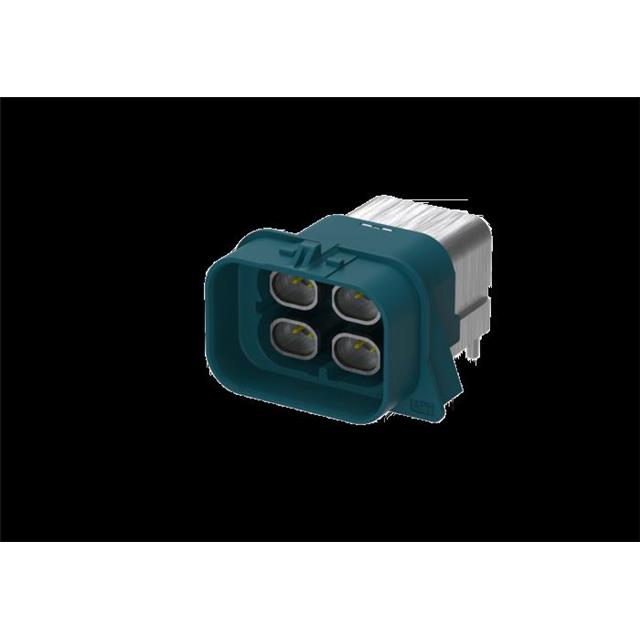

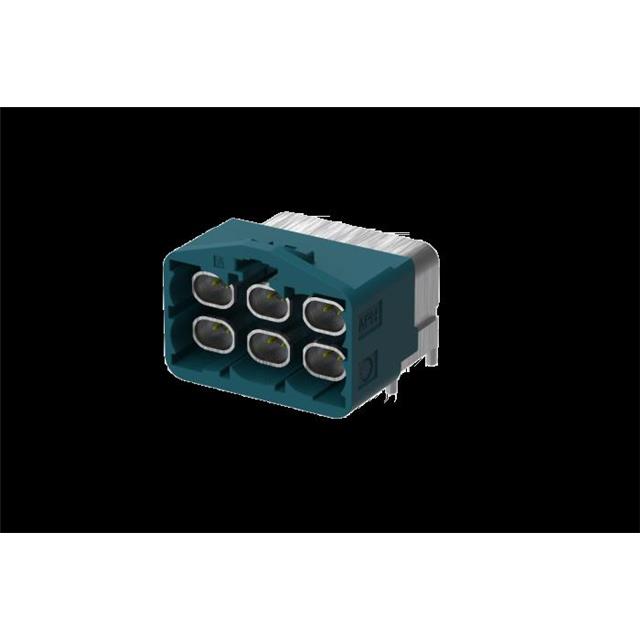

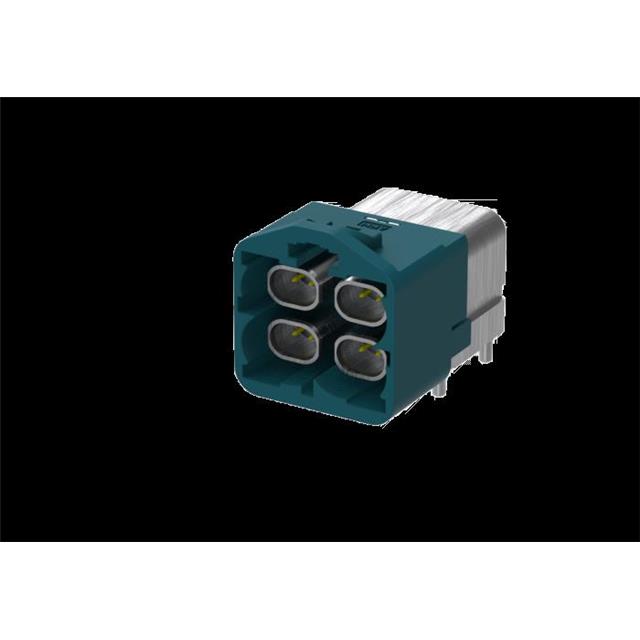

| Description | VE-NET, 1X1, RA, UNSEAL, Z CODE | VE-NET, 2X2, RA, UNSEAL, Z CODE | VE-NET, 2X2, RA, SEAL, Z CODE | VE-NET, 2X3, RA, UNSEAL, Z CODE |
| Series | Ve-Net | Ve-Net | Ve-Net | Ve-Net |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
