VO2223
lmages are for reference only.VO2223
OPTOISOLTR 5.3KV PWR TRIAC 8DIP
Datasheet8-DIP (0.300", 7.62mm), 7 Leads
39,525 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Triac, Power Output 5300Vrms 1 Channel 8-DIP
VO2223
| Category | Isolators - Optoisolators - Triac-SCR Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Type | Triac, Power |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 210V/µs (Typ) |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - Hold (Ih) | 25mA |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.3V (Max) |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-DIP |
| Approval Agency | cUR, UR |
| Base Product Number | VO2223 |
| Current - On State (It (RMS)) (Max) | 900 mA |
| Product Attribute |  |
 |
 |
 |

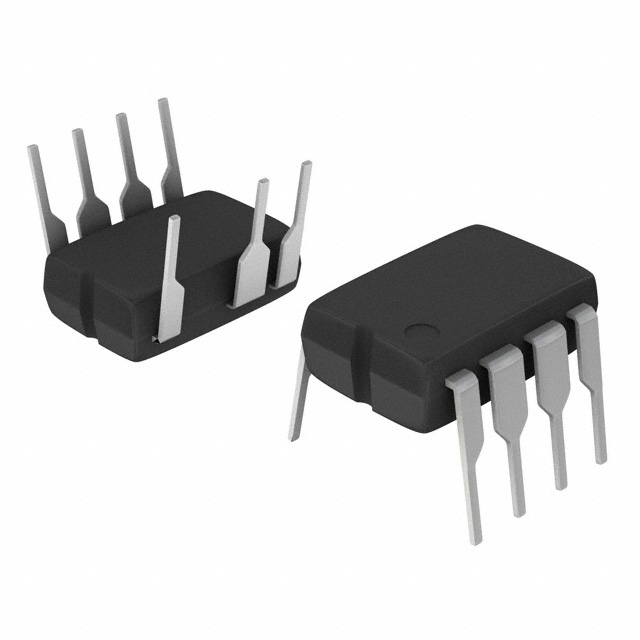

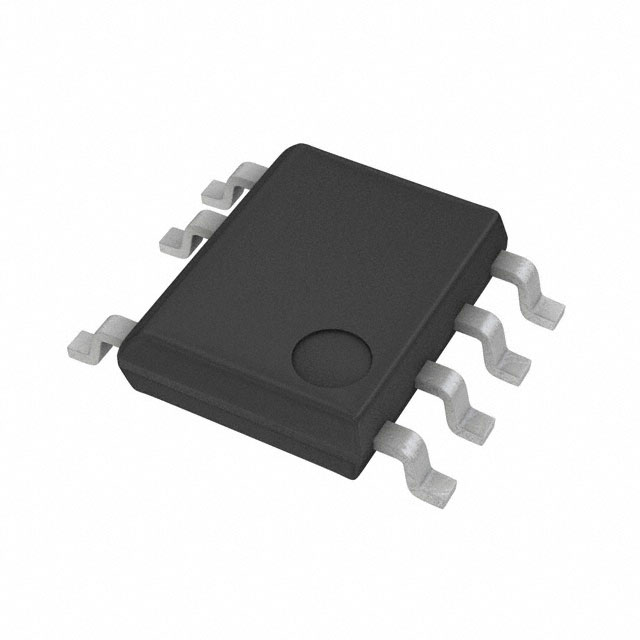

| Part Number | VO2223-X001 | VO2223A | VO2223A-X001 | VO2223A-X007T |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISOLTR 5.3KV PWR TRIAC 8DIP | OPTOISOLTR 5.3KV PWR TRIAC 8DIP | OPTOISOLTR 5.3KV PWR TRIAC 8DIP | OPTOISOLTR 5.3KV PWR TRIAC 8SMD |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT)--> |
