VO4258H
lmages are for reference only.VO4258H
OPTOISOLATOR 5.3KV TRIAC 6DIP
Datasheet6-DIP (0.300", 7.62mm)
107,788 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Triac Output 5300Vrms 1 Channel 6-DIP
VO4258H
| Category | Isolators - Optoisolators - Triac-SCR Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Voltage - Off State | 800 V |
| Static dV/dt (Min) | 5kV/µs |
| Current - LED Trigger (Ift) (Max) | 2mA |
| Current - Hold (Ih) | - |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 60 mA |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approval Agency | BSI, cUR, FIMKO, UR |
| Base Product Number | VO4258 |
| Current - On State (It (RMS)) (Max) | 300 mA |
| Product Attribute |  |
 |
 |
 |

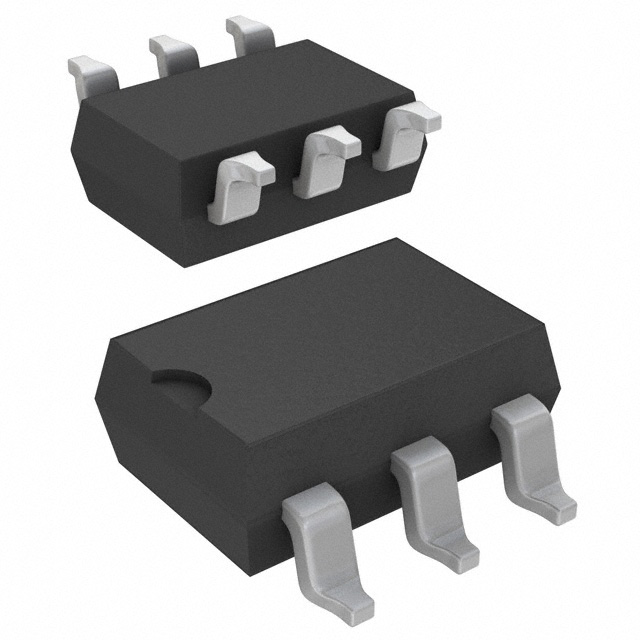

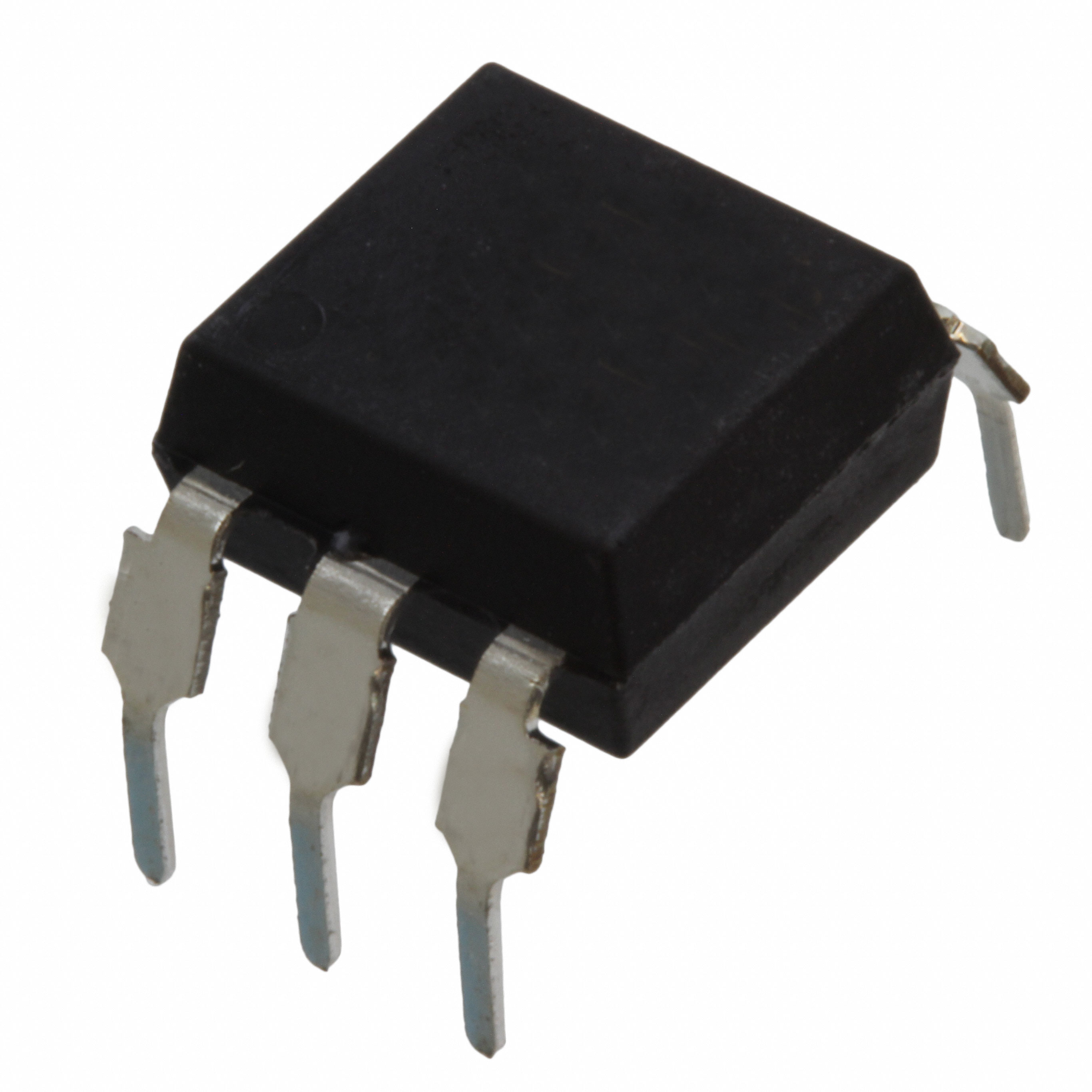

| Part Number | VO4258D | VO4258D-X007T | VO4258H-X006 | VO4258H-X007T |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISOLATOR 5.3KV TRIAC 6DIP | OPTOISOLATOR 5.3KV TRIAC 6SMD | OPTOISOLATOR 5.3KV TRIAC 6DIP | OPTOISOLATOR 5.3KV TRIAC 6SMD |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT)--> | Tube | Tape & Reel (TR)-->Cut Tape (CT)--> |
