VO615C-2X019T1
lmages are for reference only.VO615C-2X019T1
LOW INPUT CURRENT OPTOCOUPLER, P
Datasheet4-SMD, Gull Wing
84,992 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 5300Vrms 1 Channel 4-SMD
VO615C-2X019T1
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 63% @ 10mA |
| Current Transfer Ratio (Max) | 125% @ 10mA |
| Turn On / Turn Off Time (Typ) | 6µs, 4µs |
| Rise / Fall Time (Typ) | 3µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.35V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

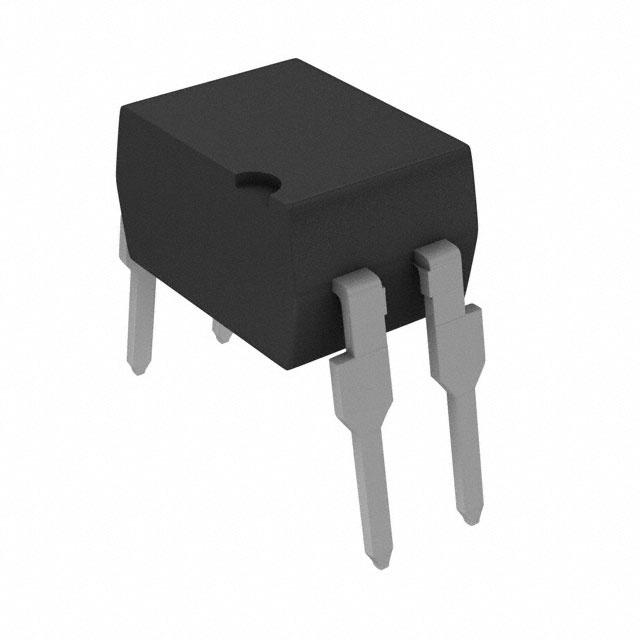

| Part Number | VO615C-2X016 | VO615C-2X019T | VO610A-1 | VO610A-1X019T |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISOLATOR 5.3KV TRANS 4-DIP | LOW INPUT CURRENT OPTOCOUPLER, P | OPTOISOLATR 5KV TRANSISTOR 4-DIP | OPTOISOLATR 5KV TRANSISTOR 4-SMD |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
