VOA300-X017

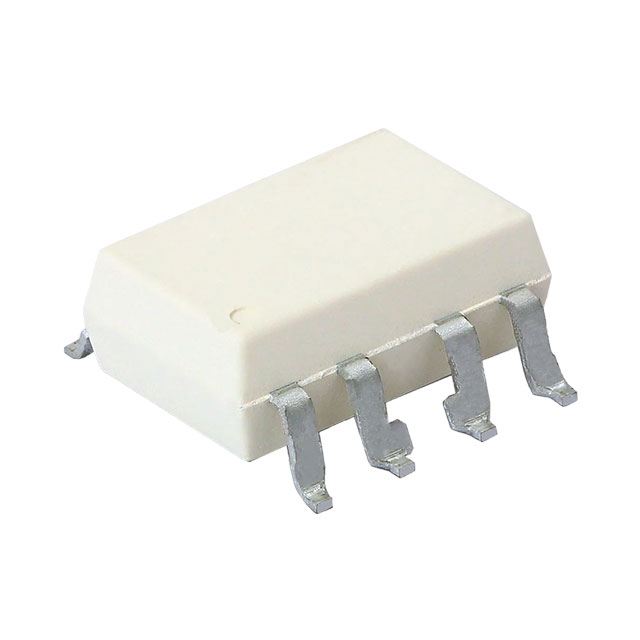

lmages are for reference only.VOA300-X017
SMD-8 OPTION 7 VDE LINEAR OPTOCO
Datasheet8-SMD, Gull Wing
98,255 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Photovoltaic, Linearized Output 5300Vrms 1 Channel 8-SMD
VOA300-X017
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | - |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 800ns, 800ns |
| Input Type | DC |
| Output Type | Photovoltaic, Linearized |
| Voltage - Output (Max) | - |
| Current - Output / Channel | - |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
| Base Product Number | VOA300 |
| Grade | Automotive |
| Qualification | AEC-Q102 |
| Product Attribute | |
|
 |
|
| Part Number | VOA300-X007 | VOA300-X007T | VOA300 | VOA300-DEFG |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ||||
| Description | SMD-8 OPTION 7 LINEAR OPTOCOUPLE | SMD-8 OPTION 7 LINEAR OPTOCOUPLE | AUTOMOTIVE FAST RESPONSE LINEAR | DIP-8 LINEAR OPTOCOUPLER, AEC-Q1 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
