VOD205T

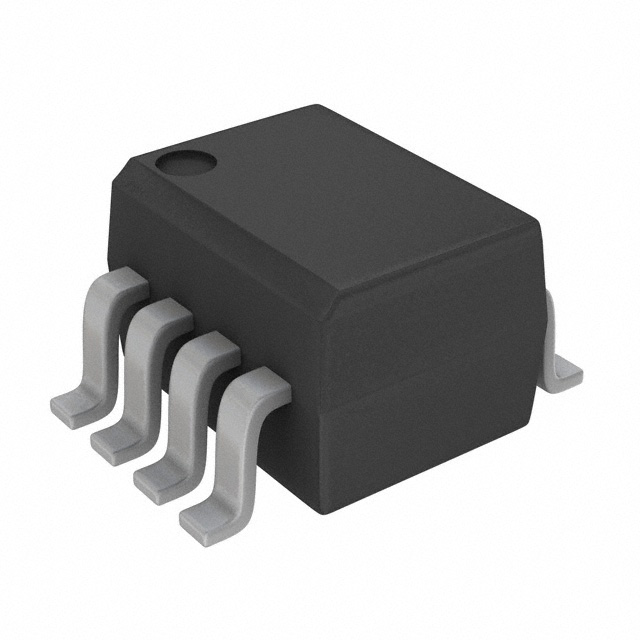

lmages are for reference only.VOD205T
OPTOISOLATOR 4KV 2CH TRANS 8SOIC
Datasheet8-SOIC (0.154", 3.90mm Width)
28,082 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 4000Vrms 2 Channel 8-SOIC
VOD205T
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 2 |
| Voltage - Isolation | 4000Vrms |
| Current Transfer Ratio (Min) | 40% @ 10mA |
| Current Transfer Ratio (Max) | 80% @ 10mA |
| Turn On / Turn Off Time (Typ) | 5µs, 4µs |
| Rise / Fall Time (Typ) | 5µs, 4µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 70V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 30 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | VOD205 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |  |  |  |
| Part Number | VOD206T | VOD207T | VOD207T-LB | VOD211T |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | OPTOISOLATOR 4KV 2CH TRANS 8SOIC | OPTOISOLATOR 4KV 2CH TRANS 8SOIC | OPTOCOUPLER | OPTOISOLATOR 4KV 2CH TRANS 8SOIC |
| Series | - | - | VOD207T | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
