VOM3053-X001T

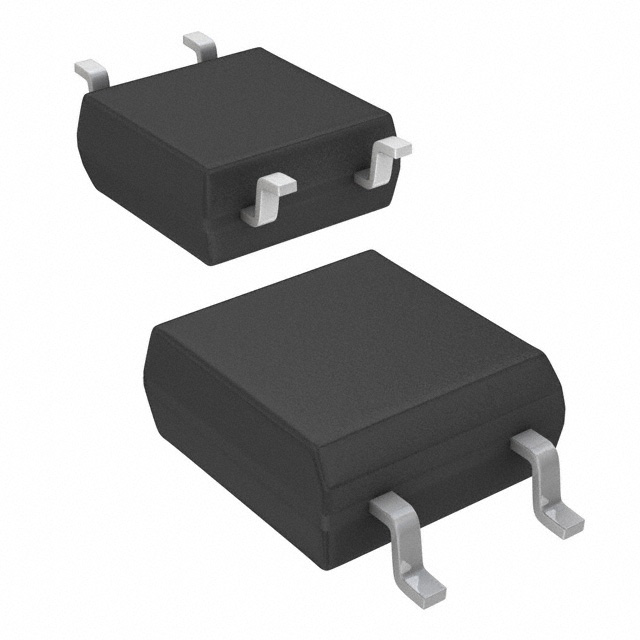

lmages are for reference only.VOM3053-X001T
OPTOISOLATOR 3.75KV TRIAC 4SOP
Datasheet4-SMD, Gull Wing
20,409 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Triac Output 3750Vrms 1 Channel 4-SOP
VOM3053-X001T
| Category | Isolators - Optoisolators - Triac-SCR Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 1.5kV/µs |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Current - Hold (Ih) | 300µA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 60 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOP |
| Approval Agency | CQC, cUR, UR, VDE |
| Base Product Number | VOM3053 |
| Current - On State (It (RMS)) (Max) | 70 mA |
| Product Attribute |  |
 |
 |
 |
| Part Number | VOM3053T | VOM160N-X001T | VOM160NT | VOM160PT |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISOLATOR 3.75KV TRIAC 4SOP | OPTOISOLATOR 3.75KV TRIAC 4SOP | OPTOISOLATOR 3.75KV TRIAC 4SOP | OPTOISOLATOR 3.75KV TRIAC 4SOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
