VOS617A-8T

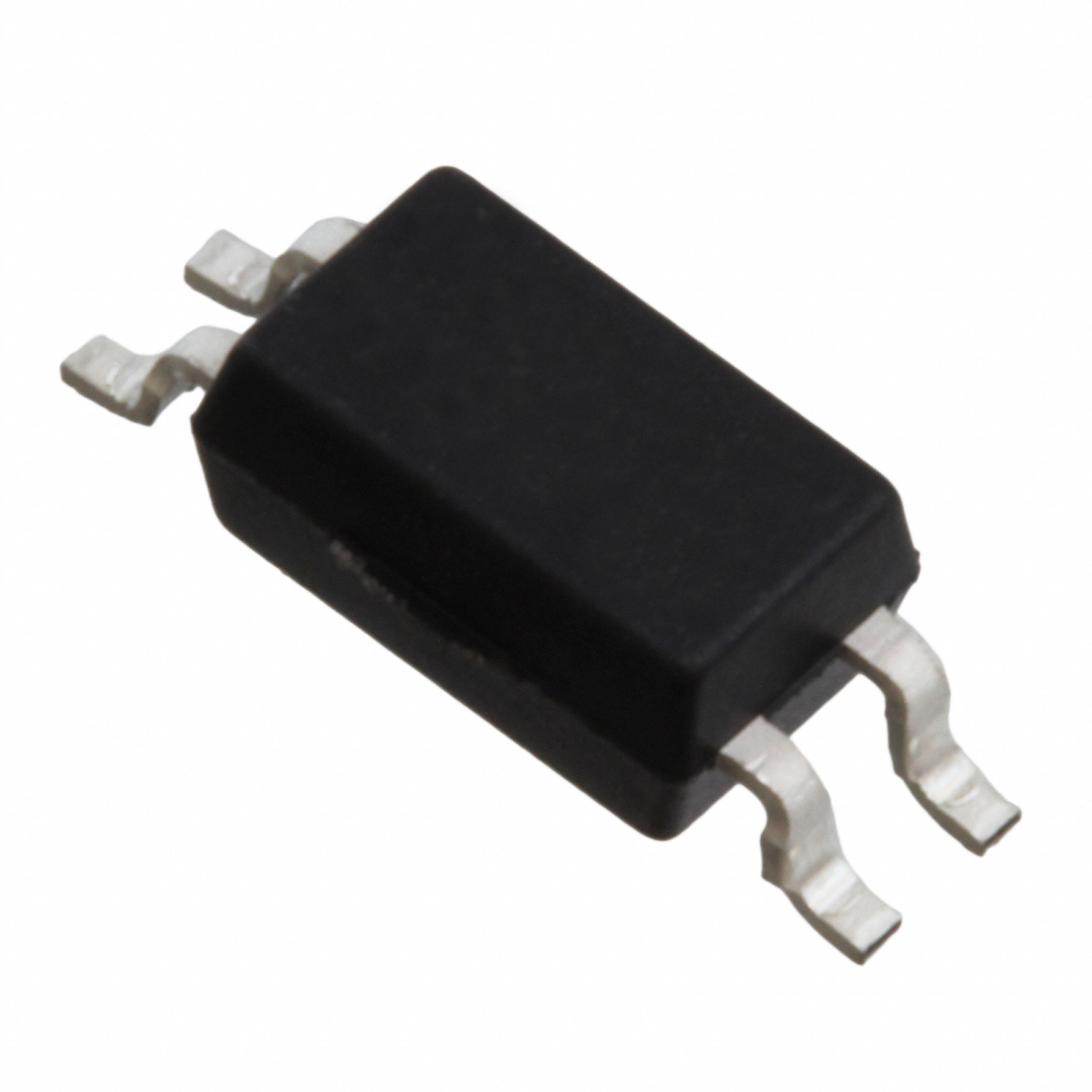

lmages are for reference only.VOS617A-8T
SSOP-4 OPTOCPL 80-160% CTR 5MA,
Datasheet4-SOIC (0.173", 4.40mm Width)
59,345 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 3750Vrms 1 Channel 4-SSOP
VOS617A-8T
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | VOS617A |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 130% @ 5mA |
| Current Transfer Ratio (Max) | 260% @ 5mA |
| Turn On / Turn Off Time (Typ) | 6µs, 4µs |
| Rise / Fall Time (Typ) | 3µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.18V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package | 4-SSOP |
| Base Product Number | VOS617 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | VOS617A-8X001T | VOS617A-2T | VOS617A-2X001T | VOS617A-3T |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SSOP-4 OPTOCPL 80-160% CTR 5MA, | OPTOISOLATOR 3.75KV TRANS 4SSOP | OPTOISOLATOR 3.75KV TRANS 4-SSOP | OPTOISOLATOR 3.75KV TRANS 4-SSOP |
| Series | VOS617A | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
