VPDD102W101K1GV001E

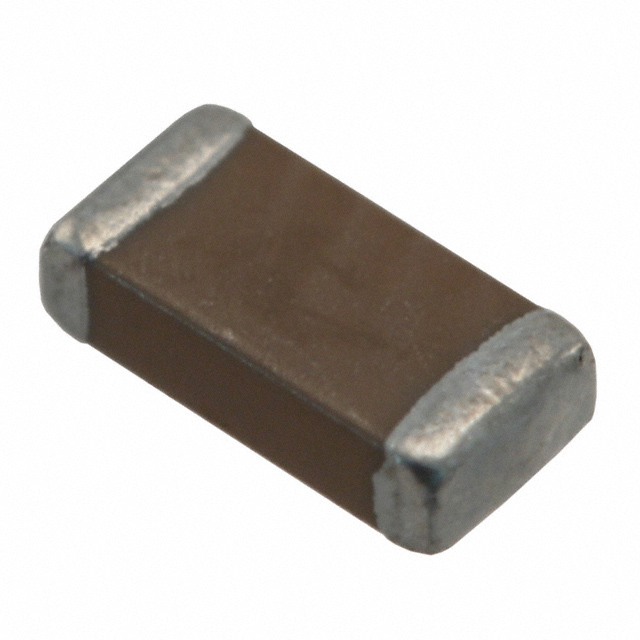

lmages are for reference only.VPDD102W101K1GV001E
CAP CER 100PF 1KV X7R 1206
Datasheet1206 (3216 Metric)
30,241 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 pF ±10% 1000V (1kV) Ceramic Capacitor X7R 1206 (3216 Metric)
VPDD102W101K1GV001E
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Dielectrics Inc. |
| Series | HVS-PME |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 100 pF |
| Tolerance | ±10% |
| Voltage - Rated | 1000V (1kV) |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Voltage |
| Ratings | - |
| Applications | SMPS Filtering |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.125" L x 0.062" W (3.18mm x 1.57mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.067" (1.70mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | VPDD102 |
| Product Attribute |  |
 |
 |
 |

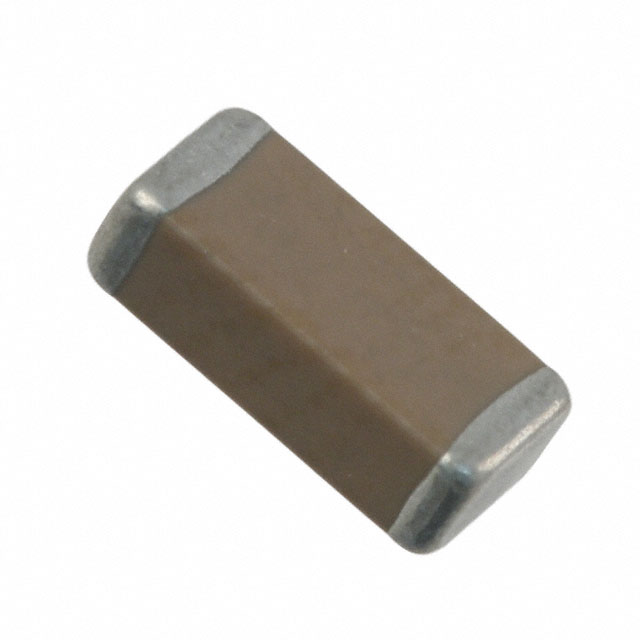

| Part Number | VPDD102W102K1GF001E | VPDD102W102K1GV001E | VPDD102W103K1GV001E | VPDD102G101J1GV001E |
| Manufacturer | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 1000PF 1KV X7R 1206 | CAP CER 1000PF 1KV X7R 1206 | CAP CER 10000PF 1KV X7R 1206 | CAP CER 100PF 1KV C0G/NP0 1206 |
| Series | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
