VPDF102W103K1GF001E
lmages are for reference only.VPDF102W103K1GF001E
CAP CER 10000PF 1KV X7R 1210
Datasheet1210 (3225 Metric)
56,741 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10000 pF ±10% 1000V (1kV) Ceramic Capacitor X7R 1210 (3225 Metric)
VPDF102W103K1GF001E
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Dielectrics Inc. |
| Series | |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Johanson Dielectrics Inc. |
| Series | PolyTerm®, HVS-PME |
| Capacitance | 10000 pF |
| Tolerance | ±10% |
| Voltage - Rated | 1000V (1kV) |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | Soft Termination, High Voltage |
| Ratings | - |
| Applications | SMPS Filtering, Boardflex Sensitive |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1210 (3225 Metric) |
| Size / Dimension | 0.125" L x 0.095" W (3.18mm x 2.41mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.080" (2.03mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | VPDF102 |
| Product Attribute |  |
 |
 |
 |

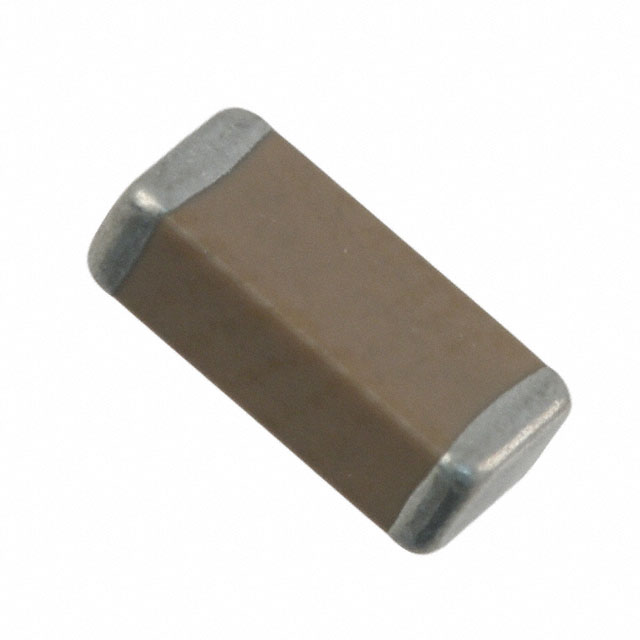

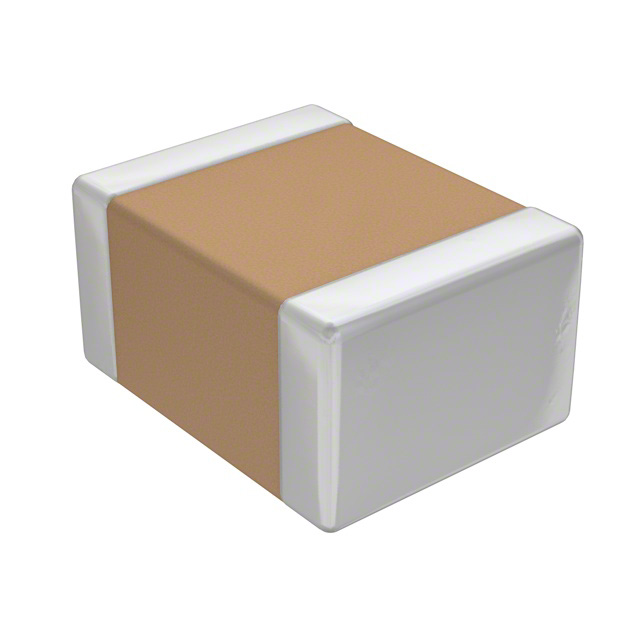

| Part Number | VPDF102W103K1GV001E | VPDF102W153K1GV001E | VPDF102G681K1GV001E | VPDF202W102K1GF001E |
| Manufacturer | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 10000PF 1KV X7R 1210 | CAP CER 0.015UF 1KV X7R 1210 | CAP CER 680PF 1KV C0G/NP0 1210 | CAP CER 1000PF 2KV X7R 1210 |
| Series | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
