VPDR102W103K1GF001E

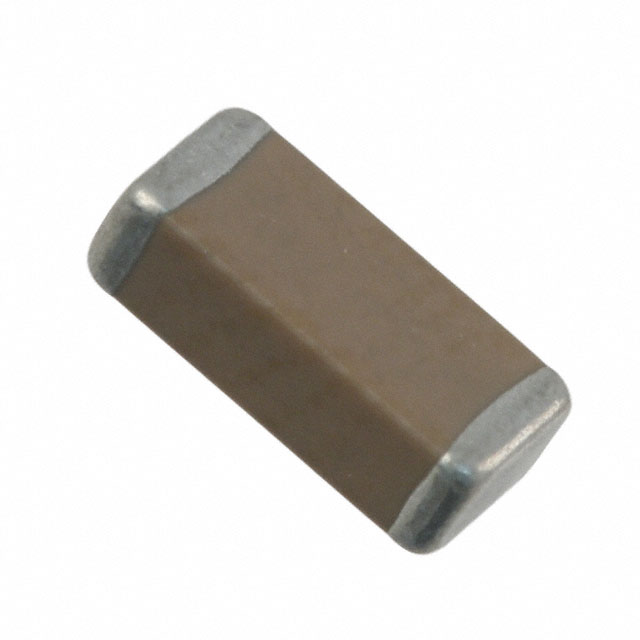

lmages are for reference only.VPDR102W103K1GF001E
CAP CER 10000PF 1KV X7R 1812
Datasheet1812 (4532 Metric)
19,996 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10000 pF ±10% 1000V (1kV) Ceramic Capacitor X7R 1812 (4532 Metric)
VPDR102W103K1GF001E
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Dielectrics Inc. |
| Series | PolyTerm®, HVS-PME |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 10000 pF |
| Tolerance | ±10% |
| Voltage - Rated | 1000V (1kV) |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | Soft Termination, High Voltage |
| Ratings | - |
| Applications | SMPS Filtering, Boardflex Sensitive |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.125" W (4.50mm x 3.18mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.110" (2.80mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | VPDR102 |
| Product Attribute |  |
 |
 |
 |
| Part Number | VPDR102W102K1GV001E | VPDR102W103M1GV001E | VPDR102W473K1GV001E | VPDR102W563K1GV001E |
| Manufacturer | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 1000PF 1KV X7R 1812 | CAP CER 10000PF 1KV X7R 1812 | CAP CER 0.047UF 1KV X7R 1812 | CAP CER 0.056UF 1KV X7R 1812 |
| Series | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
