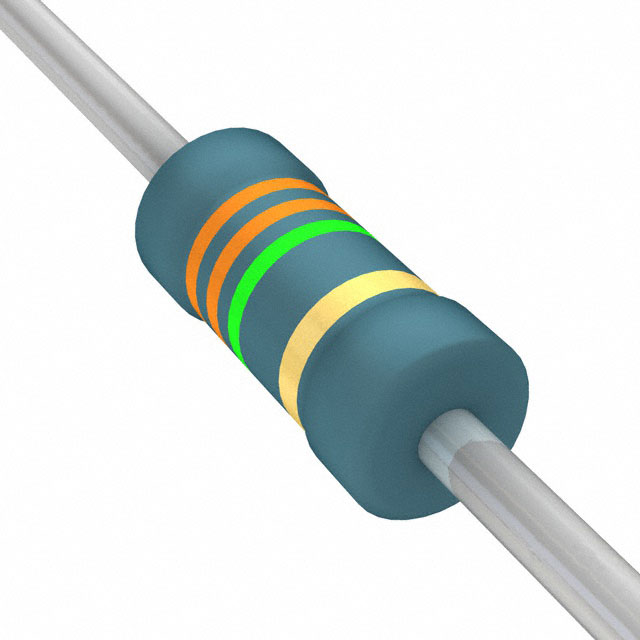

VR68000003304JAC00
lmages are for reference only.VR68000003304JAC00
RES 3.3M OHM 1W 5% AXIAL
DatasheetAxial
69,323 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.3 MOhms ±5% 1W Through Hole Resistor Axial High Voltage, Pulse Withstanding Metal Film
VR68000003304JAC00
| Category | Resistors - Through Hole Resistors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | VR68 |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 3.3 MOhms |
| Tolerance | ±5% |
| Power (Watts) | 1W |
| Composition | Metal Film |
| Features | High Voltage, Pulse Withstanding |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | Axial |
| Supplier Device Package | Axial |
| Size / Dimension | 0.268" Dia x 0.709" L (6.80mm x 18.00mm) |
| Height - Seated (Max) | - |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

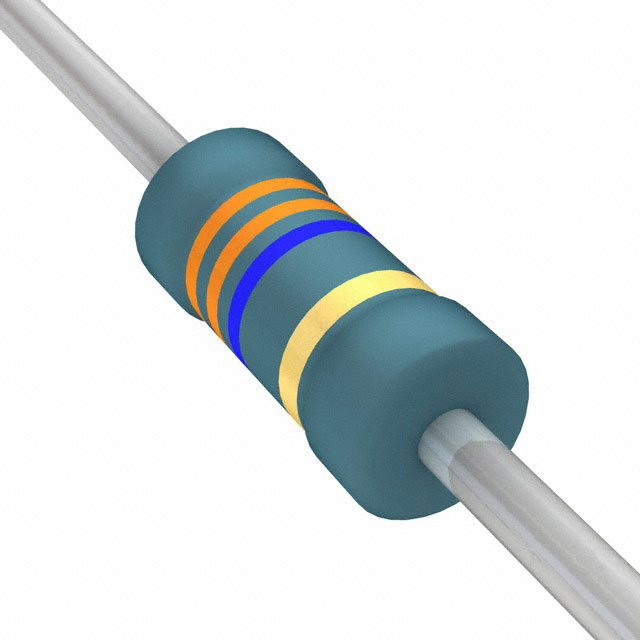

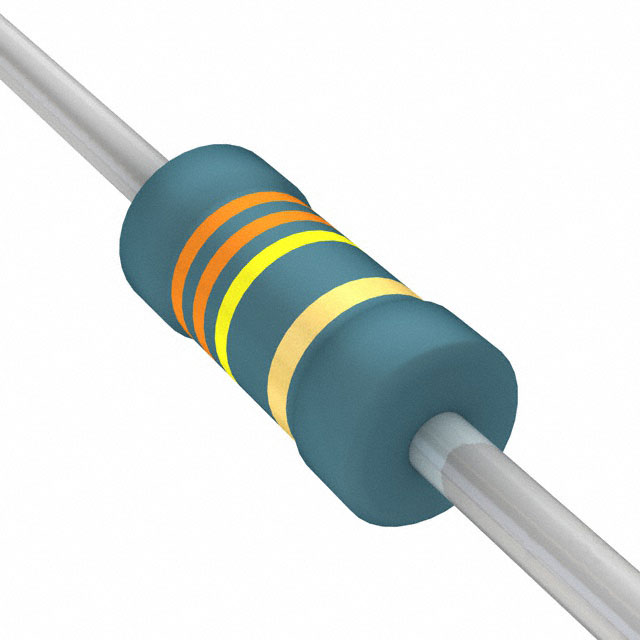

| Part Number | VR68000003303JAC00 | VR68000003304FAC00 | VR68000003305JAC00 | VR68000001003FAC00 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 330K OHM 1W 5% AXIAL | VR68 1% AC 3M3 | RES 33M OHM 1W 5% AXIAL | RES 100K OHM 1W 1% AXIAL |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) |
