VRB2403YMD-6WR3

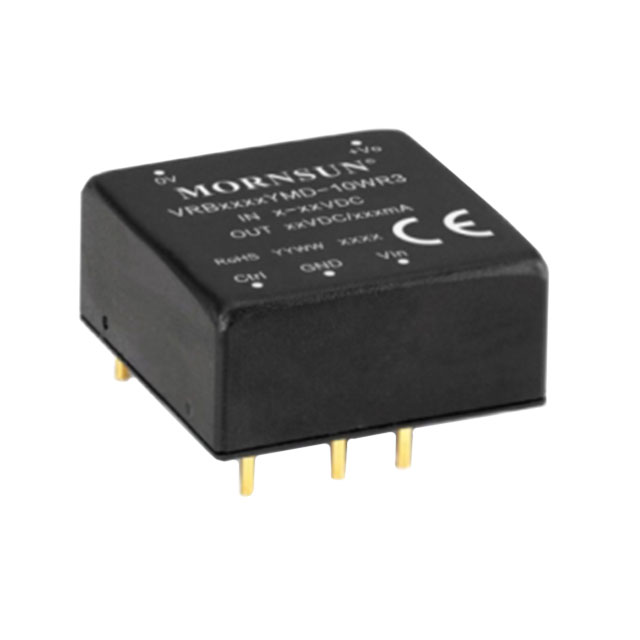

lmages are for reference only.VRB2403YMD-6WR3
ISOLATED MODULE DC DC CONVERTER
Datasheet5-DIP Module, 4 Leads
18,480 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 1.5A 18V - 36V Input
VRB2403YMD-6WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.5A |
| Power (Watts) | 5 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 77% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module, 4 Leads |
| Size / Dimension | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus, UL |
| Standard Number | 60950-1; 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute | |
 |
 |
 |

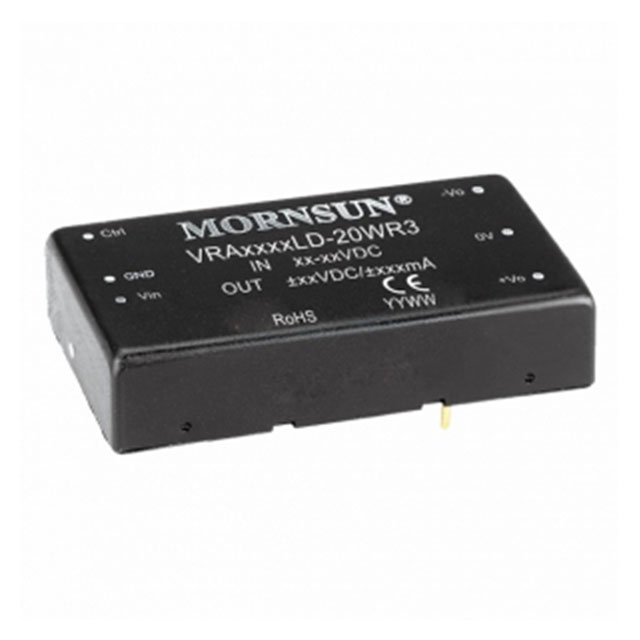

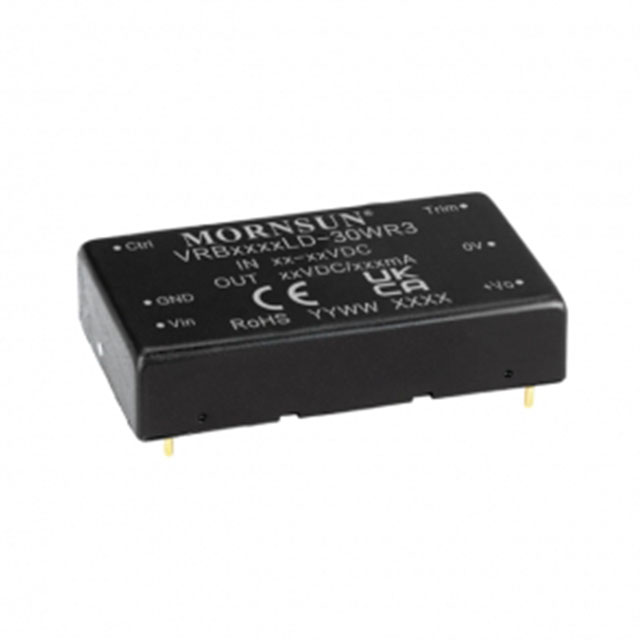

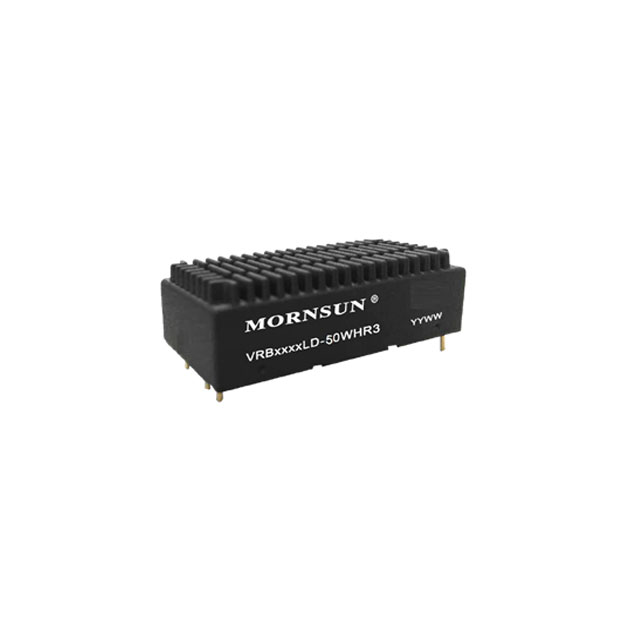

| Part Number | VRB2403YMD-6WR3 | VRB2403LD-20WR3 | VRB2403LD-30WR3 | VRB2403LD-50WHR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER |
| Series | ||||
| Packaging | VRB_YMD-6WR3 (6W) | VRB_LD-20WR3 (20W) | VRB_LD-30WR3 (30W) | VRB24_LD-50W(H)R3 (50W) |
