VRF2424DD-50WR4
lmages are for reference only.VRF2424DD-50WR4
ISOLATED MODULE DC DC CONVERTER
Datasheet7-DIP Module
16,831 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 24V 2.083A 18V - 36V Input
VRF2424DD-50WR4
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.083A |
| Power (Watts) | 50 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 88% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module |
| Size / Dimension | 1.02" L x 0.90" W x 0.28" H (25.8mm x 22.8mm x 7.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, EN, UKCA |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |

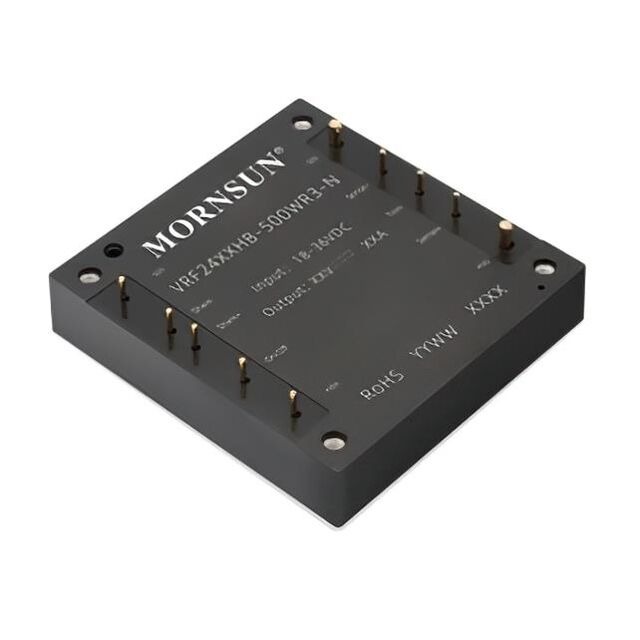

| Part Number | VRF2424HB-500WR3-N | 4AA12-P4-25PPM-M-E | PQC30-48-S15-O | 2AA24-P20 |
| Manufacturer | Mornsun America, LLC | ULTRAVOLT / Advanced Energy | CUI Inc. | ULTRAVOLT / Advanced Energy |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTER | DC/DC CONVERTER | DC-DC ISOLATED, 30 W, 36~75 VDC | AA-SERIES DC TO HVDC CONVERTER, |
| Series | ULTRAVOLT / Advanced Energy | CUI Inc. | ULTRAVOLT / Advanced Energy | |
| Packaging | VRF24_HB-500WR3-N (500W) | Bulk | Tray | Bulk |
