VS-100MT160P-P

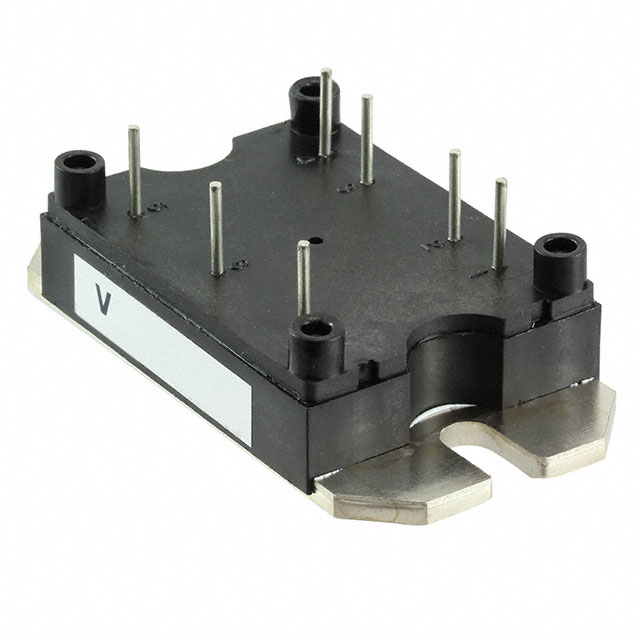

lmages are for reference only.VS-100MT160P-P
BRIDGE RECT 3P 1.6KV 100A 12MTP
Datasheet12-MTP Module
36,694 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Three Phase Standard 1.6 kV Chassis Mount 12-MTP Pressfit
VS-100MT160P-P
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Three Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 1.6 kV |
| Current - Average Rectified (Io) | 100 A |
| Voltage - Forward (Vf) (Max) @ If | 1.51 V @ 100 A |
| Current - Reverse Leakage @ Vr | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | 12-MTP Module |
| Supplier Device Package | 12-MTP Pressfit |
| Base Product Number | 100MT160 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | VS-100MT160PAPBF | VS-100MT160PBPBF | VS-104MT100KPBF | VS-104MT120KPBF |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECT 3P 1.6KV 100A 7MTPB | BRIDGE RECT 3P 1.6KV 100A 7-MTPB | BRIDGE RECT 3PHASE 1KV 100A MT-K | BRIDGE RECT 3P 1.2KV 100A MT-K |
| Series | - | - | - | - |
| Packaging | Bulk | Tray | Tray | Tray |
