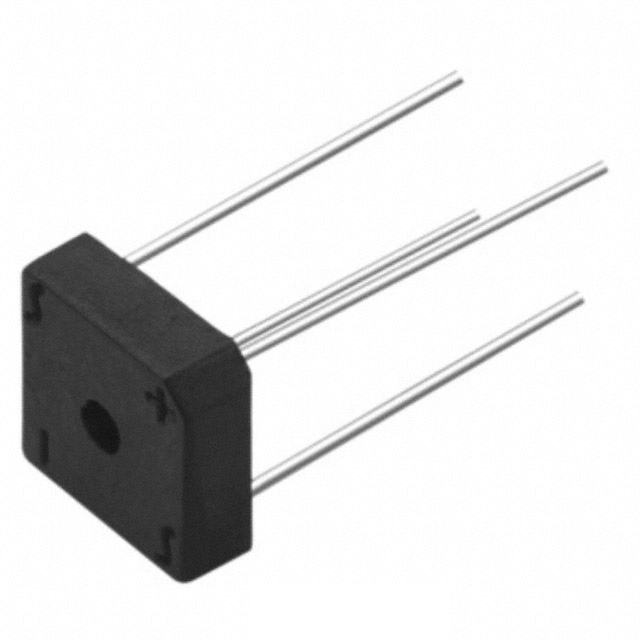

VS-KBPC602PBF
lmages are for reference only.VS-KBPC602PBF
BRIDGE RECT 1PHASE 200V 6A D-72
Datasheet4-Square, D-72
49,201 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 200 V Through Hole D-72
VS-KBPC602PBF
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | VS-KBPC6 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 200 V |
| Current - Average Rectified (Io) | 6 A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 3 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-Square, D-72 |
| Supplier Device Package | D-72 |
| Base Product Number | KBPC602 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |  |  |  |

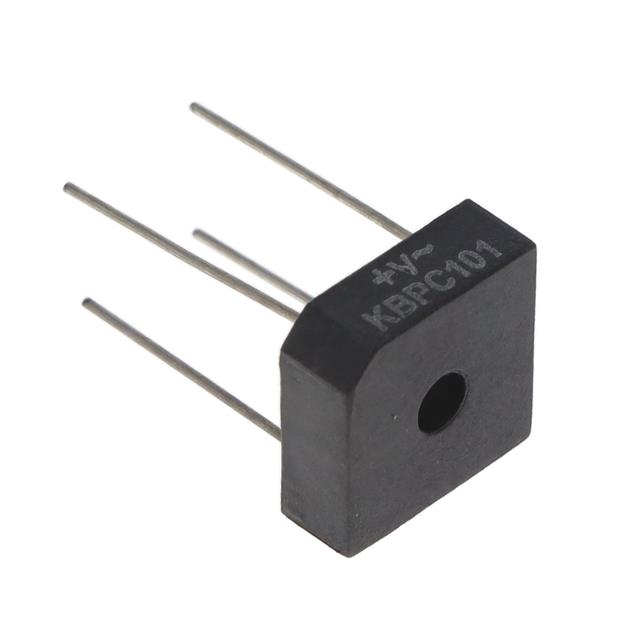

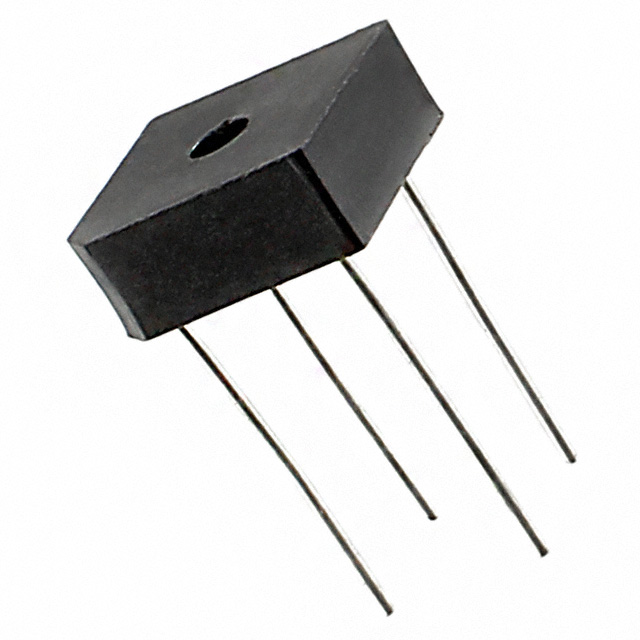

| Part Number | VS-KBPC602 | VS-KBPC1005 | VS-KBPC101 | VS-KBPC102 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | BRIDGE 1-PH KBPC6 200V 6A 150C | BRIDGE RECT 1PHASE 1KV 3A D-72 | BRIDGE RECTIFIER 100V 3.0A D-46 | BRIDGE RECT 1PHASE 200V 3A KBPC1 |
| Series | VS-KBPC6 | VS-KBPC1 | VS-KBPC1 | VS-KBPC1 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
