Product CatalogPart Number
VS-SC40FA65
Manufacturer
VishayDescription
DIODE MOD SIC 650V 20A SOT-227
Datasheet
DatasheetPackage
SOT-227-4, miniBLOC
In Stock
98,620 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VS-SC40FA65
VS-SC40FA65

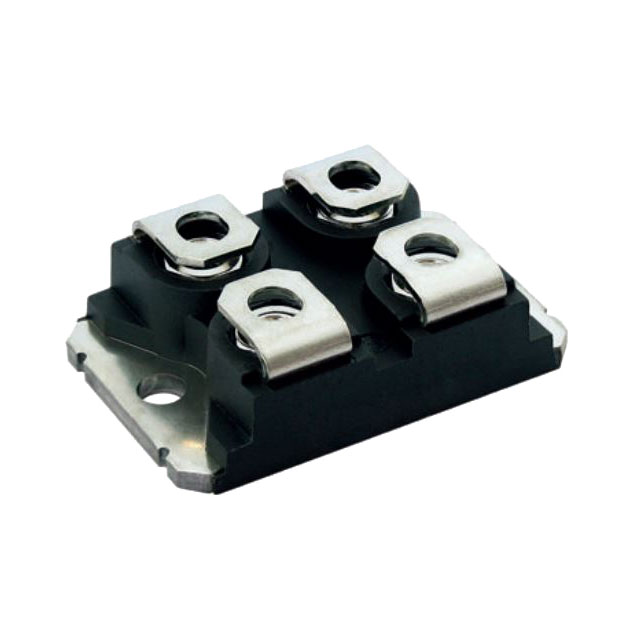

lmages are for reference only.Payment Methods
Delivery Services
Diode Array 2 Independent 650 V 20A Chassis Mount SOT-227-4, miniBLOC
Quick Inquiry
VS-SC40FA65
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay |
| Series | - |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 2 Independent |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) (per Diode) | 20A |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V @ 20 A |
| Speed | No Recovery Time > 500mA (Io) |
| Current - Reverse Leakage @ Vr | 40 µA @ 650 V |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227 |
| Base Product Number | - |
| Reverse Recovery Time (trr) | 0 ns |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | VS-SC40FA120 | VS-SC120FA120 | VS-SC120FA65 | VS-SC160FA120 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE MOD SIC 1200V 20A SOT-227 | DIODE MOD SIC 1200V 60A SOT-227 | DIODE MOD SIC 650V 60A SOT-227 | DIODE MOD SIC 1200V 80A SOT-227 |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Strip | Tube |
