VS-ST1230C14K0

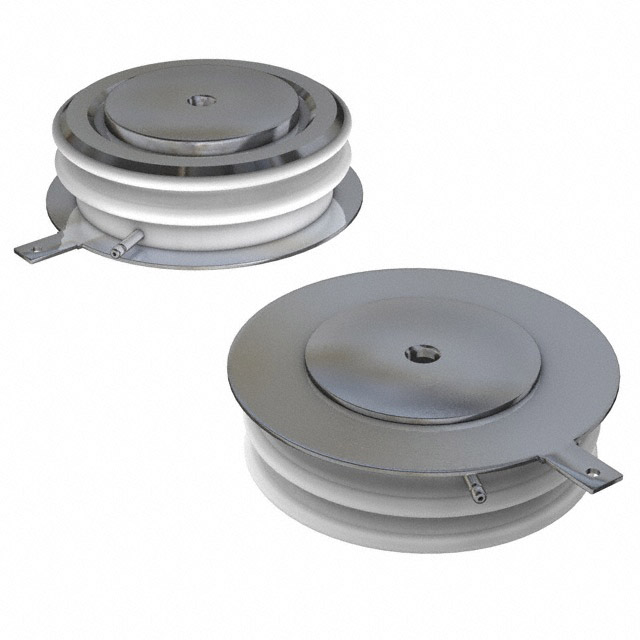

lmages are for reference only.VS-ST1230C14K0
SCR 1.4KV 3200A A24
DatasheetTO-200AC, K-PUK, A-24
27,810 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
SCR 1.4 kV 3200 A Standard Recovery Clamp On A-24 (K-Puk)
VS-ST1230C14K0
| Category | Discrete Semiconductor Products - Thyristors - SCRs |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Voltage - Off State | 1.4 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - Gate Trigger (Igt) (Max) | 200 mA |
| Current - On State (It (AV)) (Max) | 1745 A |
| Current - Hold (Ih) (Max) | 600 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 33500A, 35100A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Clamp On |
| Package / Case | TO-200AC, K-PUK, A-24 |
| Supplier Device Package | A-24 (K-Puk) |
| Voltage - On State (Vtm) (Max) | 1.62 V |
| Current - On State (It (RMS)) (Max) | 3200 A |
| Current - Off State (Max) | 100 mA |
| Base Product Number | ST1230 |
| Product Attribute |  |
 |
 |
 |
| Part Number | VS-ST1230C14K0L | VS-ST1230C14K0LP | VS-ST1230C14K0P | VS-ST1230C14K1 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SCR 1.4KV 3200A A24 | SCR 1.4KV 3200A A24 | SCR 1.4KV 3200A A24 | SCR 1.4KV 3200A A24 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
