VS-VSKT162/12PBF
lmages are for reference only.VS-VSKT162/12PBF
MOD PH CTRL 1200V 160A INT-A-PAK
DatasheetINT-A-PAK (3)
61,205 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
SCR Module 1.2 kV 355 A Series Connection - All SCRs Chassis Mount INT-A-PAK (3)
VS-VSKT162/12PBF
| Category | Discrete Semiconductor Products - Thyristors - SCRs Modules |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Structure | Series Connection - All SCRs |
| Number of SCRs, Diodes | 2 SCRs |
| Voltage - Off State | 1.2 kV |
| Current - On State (It (AV)) (Max) | 160 A |
| Current - On State (It (RMS)) (Max) | 355 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 4870A, 5100A |
| Current - Hold (Ih) (Max) | 200 mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | INT-A-PAK (3) |
| Base Product Number | VSKT162 |
| Grade | - |
| Qualification | - |
| Product Attribute | |  | |  |

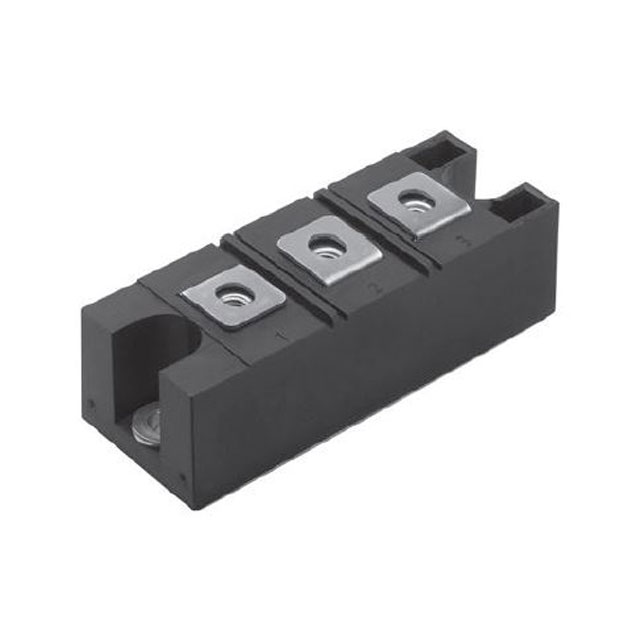

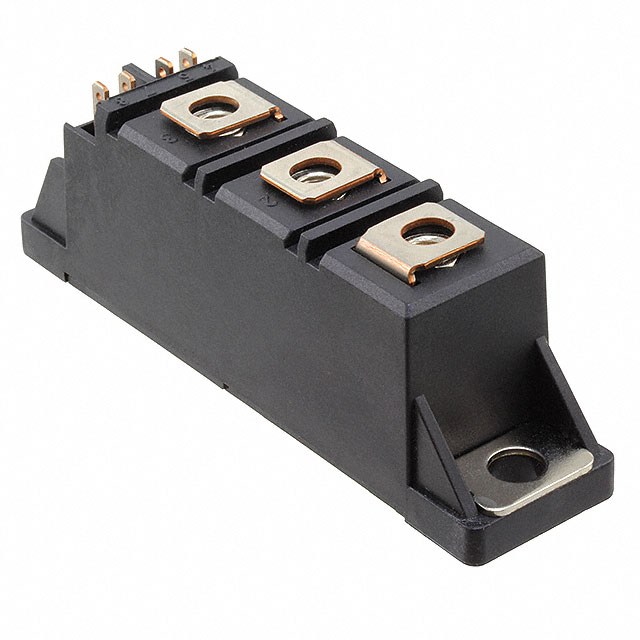

| Part Number | VS-VSKT162/12PBF | VS-VSKT162/04PBF | VS-VSKT162/04PBF | VS-VSKT162/08PBF |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOD PH CTRL 1200V 160A INT-A-PAK | MODULE THYRISTOR 160A INT-A-PAK | MODULE THYRISTOR 160A INT-A-PAK | MOD PH CTRL 800V 160A INT-A-PAK |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
