VS100VLNVWMTR
lmages are for reference only.VS100VLNVWMTR
100V 200W, COMPACT AND HIGHLY RE
Datasheet2-SMD, Flat Leads
74,402 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
162V Clamp 1.2A Ipp Tvs Diode Surface Mount PMDE
VS100VLNVWMTR
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 100V |
| Voltage - Breakdown (Min) | 114V |
| Voltage - Clamping (Max) @ Ipp | 162V |
| Current - Peak Pulse (10/1000µs) | 1.2A |
| Power - Peak Pulse | 200W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Flat Leads |
| Supplier Device Package | PMDE |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

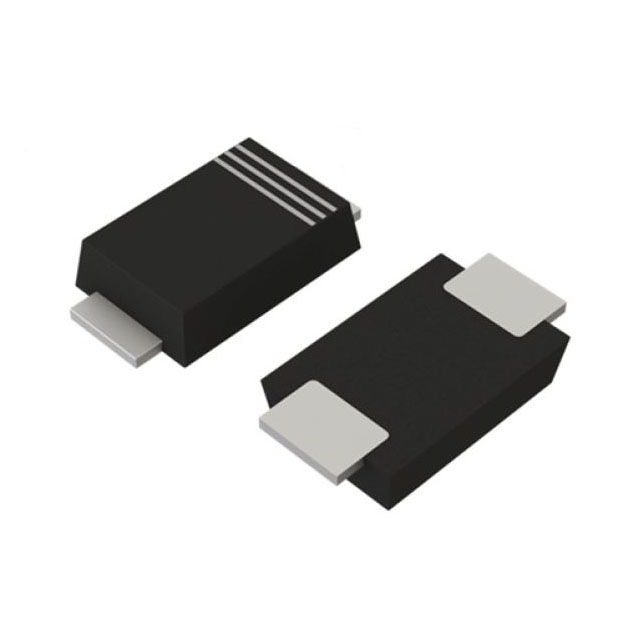

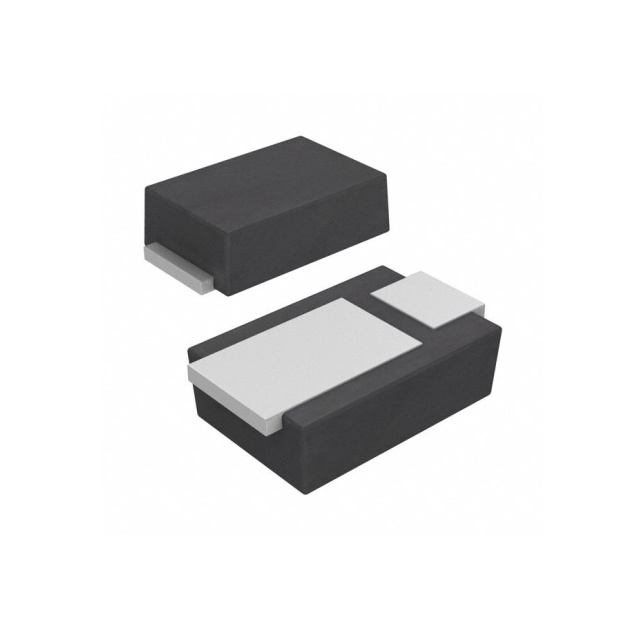

| Part Number | VS100VLNVWMTFTR | VS10VUA1LAMTFTR | VS10VUA1LAMTR | VS110VLNVWMTFTR |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 100V 200W, COMPACT AND HIGHLY RE | TVS DIODE 10VWM 17VC PMDTM | TVS DIODE 10VWM 17VC PMDTM | 110V 200W, COMPACT AND HIGHLY RE |
| Series | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
