VS12VUD1HST15R
lmages are for reference only.VS12VUD1HST15R
UNI-DIRECTIONAL, RASMID SERIES,
Datasheet0201 (0603 Metric)
73,945 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
21.5V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount DSN0603-2, SOD-962, SMD0603
VS12VUD1HST15R
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 12V (Max) |
| Voltage - Breakdown (Min) | 12.2V |
| Voltage - Clamping (Max) @ Ipp | 21.5V |
| Current - Peak Pulse (10/1000µs) | 6A (8/20µs) |
| Power - Peak Pulse | 129W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 40pF @ 1MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | DSN0603-2, SOD-962, SMD0603 |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|

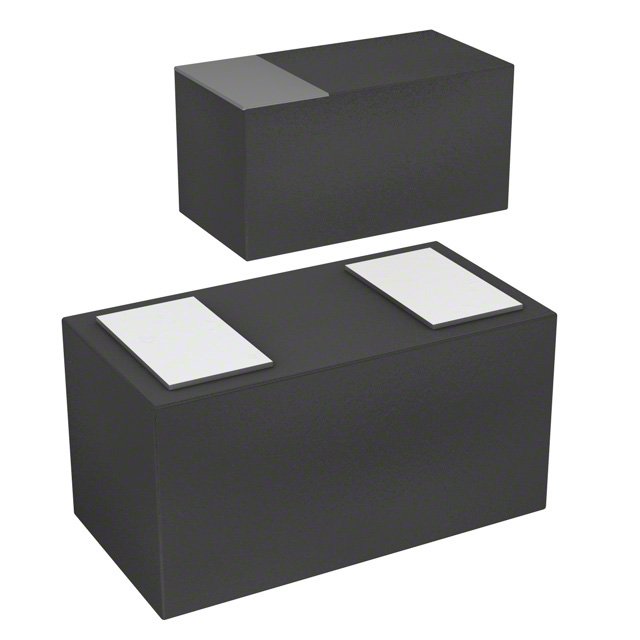

| Part Number | VS12VBA1HST15R | VS12VUA1LAMTFTR | VS12VUA1LAMTR | VS12VUA1VWMTFTR |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 12VWM 14VC DSN0603-2 | TVS DIODE 12VWM 19.9VC PMDTM | TVS DIODE 12VWM 19.9VC PMDTM | 12V 200W, COMPACT AND HIGHLY REL |
| Series | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
