Product CatalogPart Number
VSBU-120-D515
Manufacturer
CUI Inc.Description
AC/DC CONVERTER 5V 15V 120W
Datasheet
DatasheetPackage
-
In Stock
51,694 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VSBU-120-D515
VSBU-120-D515

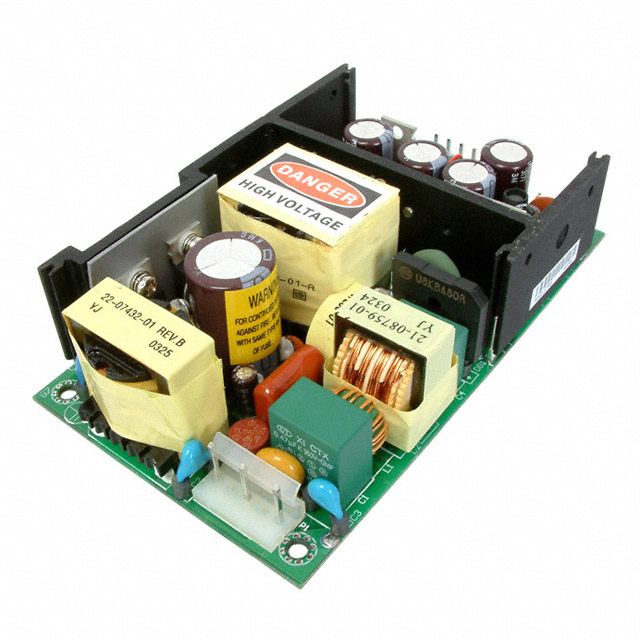

lmages are for reference only.Payment Methods
Delivery Services
Open Frame AC DC Converters 2 Output 5V 15V 90 ~ 260 VAC Input
Quick Inquiry
VSBU-120-D515
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | CUI Inc. |
| Series | VSBU-120-D (120W) |
| Packaging | Box |
| RoHS Status | RoHS Compliant |
| Type | Open Frame |
| Number of Outputs | 2 |
| Voltage - Input | 90 ~ 260 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 15 A |
| Current - Output 2 | 6 A |
| Current - Output 3 | - |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4.242 kV |
| Efficiency | 80% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
| Approval Agency | CB Scheme, EN, IEC, SIQ, TUV, UL |
| Minimum Load Required | No |
| Voltage - Output 5 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Power (Watts) | 120W |
| Features | PFC, Universal Input |
| Standard Number | 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3 |
| Base Product Number | VSBU-120 |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | VSBU-120-D512 | VSBU-120-D285 | VSBU-120-D305 | VSBU-120-D312 |
| Manufacturer | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | AC/DC CONVERTER 5V 12V 120W | AC/DC CONVERTER 28V 5V 120W | AC/DC CONVERTER 3.3V 5V 120W | AC/DC CONVERTER 3.3V 12V 120W |
| Series | VSBU-120-D (120W) | VSBU-120-D (120W) | VSBU-120-D (120W) | VSBU-120-D (120W) |
| Packaging | Box | Box | Box | Box |
