VSE1C271MCB6309ER
lmages are for reference only.VSE1C271MCB6309ER
CAP ALUM POLY 270UF 20% 16V SMD
DatasheetRadial, Can - SMD
38,205 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
270 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 9mOhm 5000 Hrs @ 105°C
VSE1C271MCB6309ER
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | VSE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 9mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.8 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

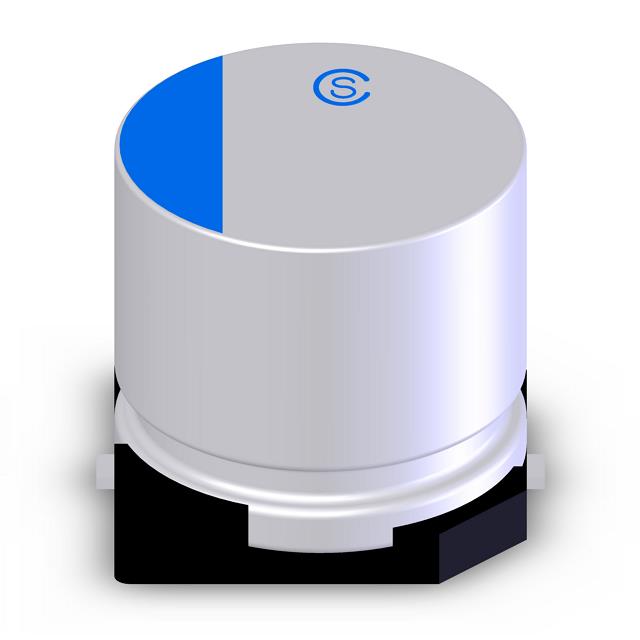

| Part Number | VSE1C101MCB6357 | VSP1C271MCB6309 | VSP0J221MCB6343 | VSP0J561MCB6309 |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 100UF 20% 16V SMD | CAP ALUM POLY 270UF 20% 16V SMD | CAP ALUM POLY 220UF 20% 6.3V SMD | CAP ALUM POLY 560UF 20% 6.3V SMD |
| Series | VSE | VSP | VSP | VSP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
