VSSAF5L63HM3/I
lmages are for reference only.Payment Methods
Delivery Services
Diode 60 V 2.6A Surface Mount DO-221AC (SlimSMA)
VSSAF5L63HM3/I
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) | 2.6A |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 80 µA @ 60 V |
| Capacitance @ Vr, F | 780pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | DO-221AC (SlimSMA) |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

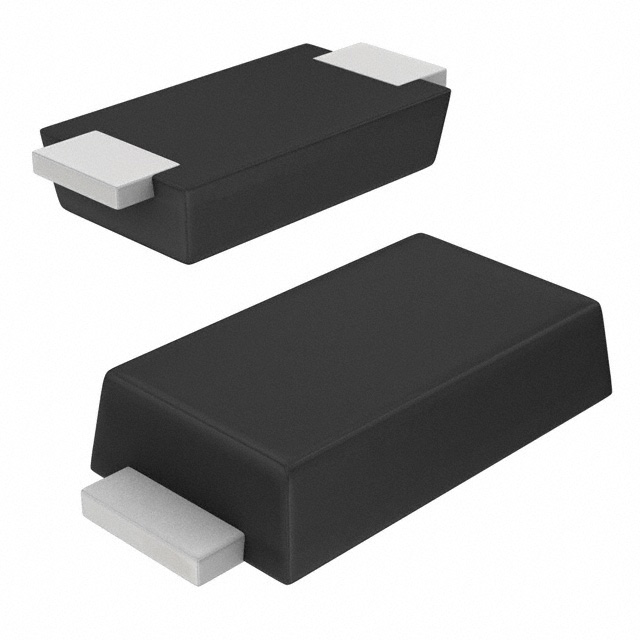

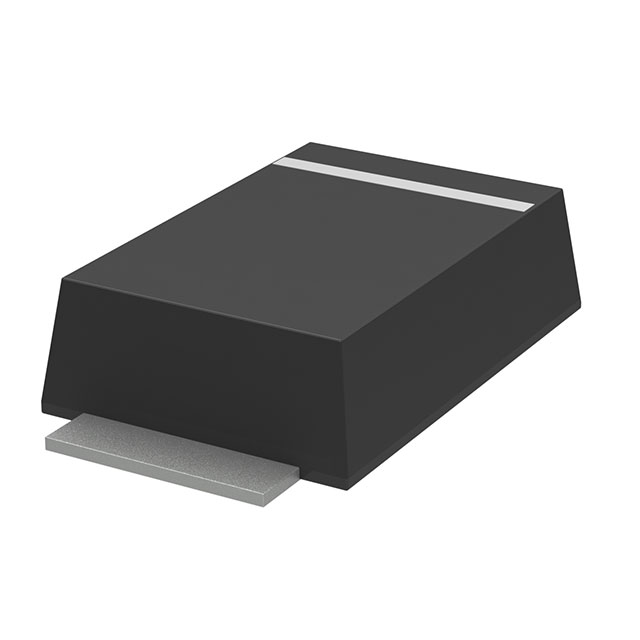

| Part Number | VSSAF5L63-M3/H | VSSAF5L63-M3/I | VSSAF5L63HM3/H | VSSA210-E3/5AT |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 5A, 60V SLIMSMA TRENCH SKY RECT. | 5A, 60V SLIMSMA TRENCH SKY RECT. | 5A, 60V SLIMSMA TRENCH SKY RECT. | DIODE SCHOTTKY 100V 1.7A DO214AC |
| Series | TMBS® | - | TMBS® | TMBS® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
