VSSAF5M103HM3/H
lmages are for reference only.Payment Methods
Delivery Services

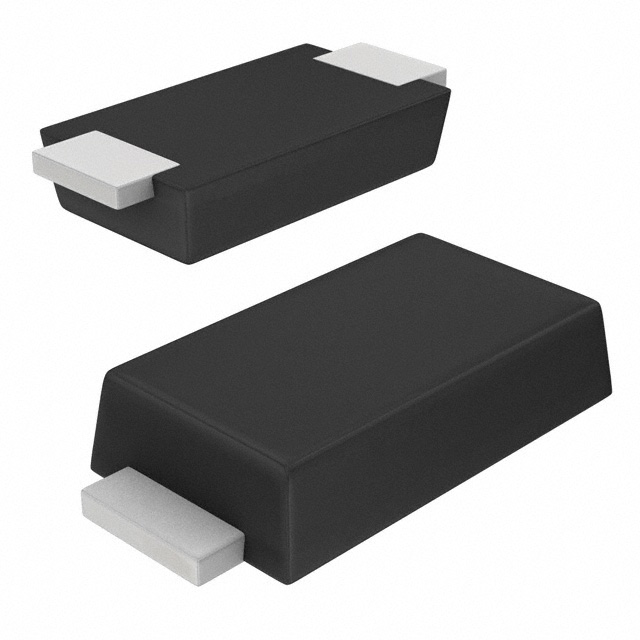

Diode 100 V 2.4A Surface Mount DO-221AC (SlimSMA)
VSSAF5M103HM3/H
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 2.4A |
| Voltage - Forward (Vf) (Max) @ If | 730 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 140 µA @ 100 V |
| Capacitance @ Vr, F | 570pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | DO-221AC (SlimSMA) |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
|
| Part Number | VSSAF5M103HM3/I | VSSAF5M10-M3/H | VSSAF5M10-M3/I | VSSAF5M103-M3/H |
| Manufacturer | Vishay | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 5A, 100V, SLIM SMA TRENCH SKY RE | DIODE SCHOTTKY 100V 5A DO221AC | DIODE SCHOTTKY 100V 5A DO221AC | 5A, 100V, SLIM SMA TRENCH SKY RE |
| Series | - | TMBS®, SlimSMA™ | TMBS®, SlimSMA™ | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
