Product CatalogPart Number
VTT9814FH
Manufacturer
Excelitas TechnologiesDescription
PHOTOTRANSISTOR T1-3/4 EPOXY
Datasheet
DatasheetPackage
Radial
In Stock
43,380 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VTT9814FH
VTT9814FH
lmages are for reference only.Payment Methods
Delivery Services
Phototransistors 585nm Top View Radial
Quick Inquiry
VTT9814FH
Specifications
| Category | Sensors, Transducers - Optical Sensors - Phototransistors |
| Manufacturer | Excelitas Technologies |
| Series | VTT |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - Collector (Ic) (Max) | 100 µA |
| Current - Dark (Id) (Max) | 50 nA |
| Wavelength | 585nm |
| Viewing Angle | 50° |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C |
| Package / Case | Radial |
| Base Product Number | - |
| Power - Max | 50 mW |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

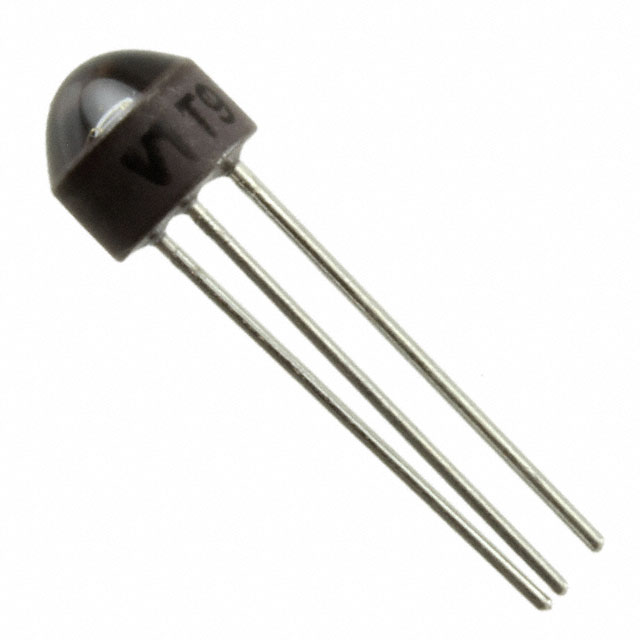

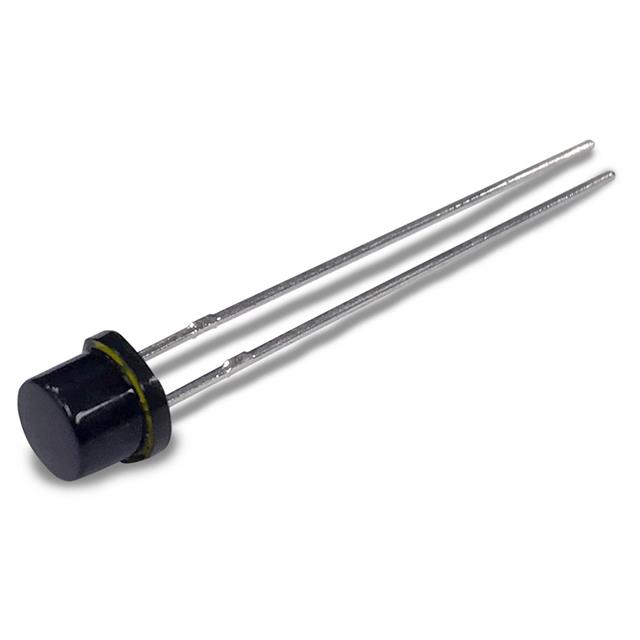

| Part Number | VTT9812FH | VTT1314H | VTT3425LAH | VTT9102H |
| Manufacturer | Excelitas Technologies | Excelitas Technologies | Excelitas Technologies | Excelitas Technologies |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ||
| Description | SENSOR PHOTO TOP VIEW T1 3/4 | SENSOR PHOTO TOP VIEW T1 3/4 | SENSOR PHOTO TOP VIEW RADIAL | SENSOR PHOTO TOP TO106-3 DOMED |
| Series | VTT | VTT | VTT | VTT |
| Packaging | Box | Box | Bag | Box |
