Product CatalogPart Number
VX7815-1000
Manufacturer
CUI Inc.Description
DC DC CONVERTER 15V 15W
Datasheet
DatasheetPackage
3-SIP Module
In Stock
12,511 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VX7815-1000
VX7815-1000
lmages are for reference only.Payment Methods
Delivery Services
Linear Regulator Replacement DC DC Converter 1 Output 15V 1A 20V - 36V Input
Quick Inquiry
VX7815-1000
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | CUI Inc. |
| Series | VX78-1000 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Linear Regulator Replacement |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 20V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 96% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB Scheme, EN, IEC, UL |
| Standard Number | 55024; 55032 Class A; 60950-1 |
| Base Product Number | VX7815 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

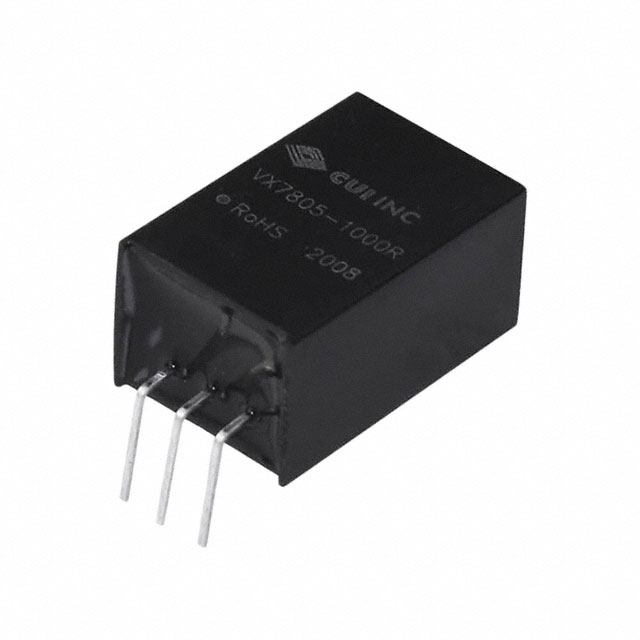

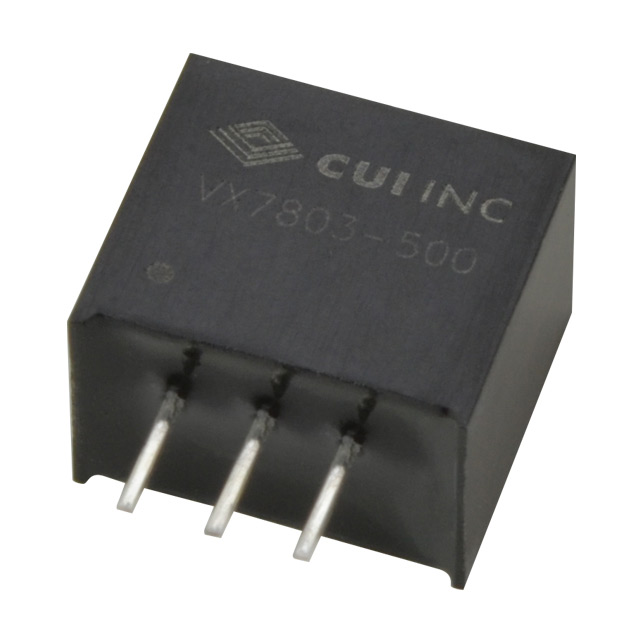

| Part Number | VX7812-1000R | VX7815-1000R | VX7815-500 | V24C48T50BN |
| Manufacturer | CUI Inc. | CUI Inc. | CUI Inc. | Vicor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | DC DC CONVERTER +/-12V 16W | DC DC CONVERTER +/-15V 20W | DC DC CONVERTER 15V 7.5W | DC DC CONVERTER 48V 50W |
| Series | CUI Inc. | CUI Inc. | CUI Inc. | Vicor Corporation |
| Packaging | Tube | Tube | Tube | Bulk |
