Product CatalogPart Number
VXO7805-1000
Manufacturer
CUI Inc.Description
DC DC CONVERTER 5V OR -5V 5W
Datasheet
DatasheetPackage
3-SIP Module
In Stock
62,375 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VXO7805-1000
VXO7805-1000
lmages are for reference only.Payment Methods
Delivery Services
Linear Regulator Replacement DC DC Converter 1 Output 5V or -5V 1A or 500mA 8V - 36V or 27V Input
Quick Inquiry
VXO7805-1000
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | CUI Inc. |
| Series | VXO78-1000 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Linear Regulator Replacement |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8V |
| Voltage - Input (Max) | 36V or 27V |
| Voltage - Output 1 | 5V or -5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A or 500mA |
| Power (Watts) | 5 W |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 93% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.45" L x 0.30" W x 0.69" H (11.5mm x 7.5mm x 17.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB Scheme, EN, IEC, UL |
| Standard Number | 55024; 55032 Class A; 60950-1 |
| Base Product Number | VXO7805 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | VXO78012-1000 | VXO78012-500 | VXO78012-500-M-TR | VXO78015-1000 |
| Manufacturer | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 12V OR -12V 12W | DC DC CONVERTER 12V OR -12V 6W | DC DC CONVERTER 12V 6W | DC DC CONVERTER 15V OR -15V |
| Series | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| Packaging | Tray | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tray |
Customers Also Interested in
Recommended Products
VXO78012-1000
CUI Inc.
VXO78012-500
CUI Inc.
VXO78012-500-M-TR
CUI Inc.

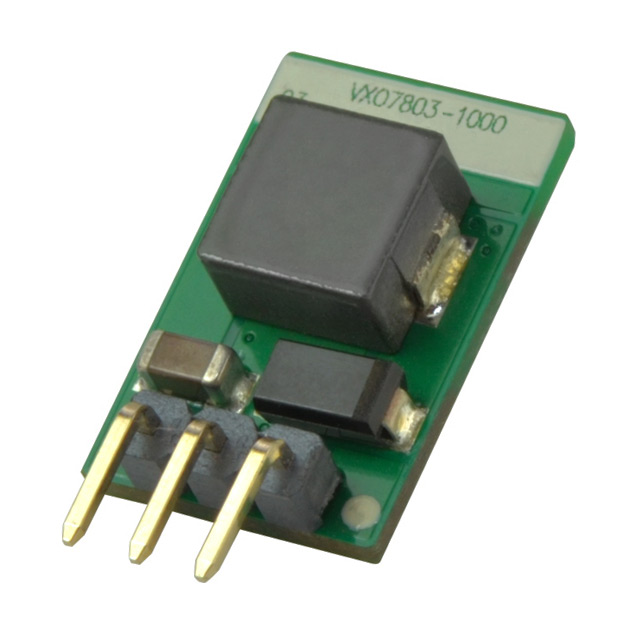

VXO78015-1000
CUI Inc.

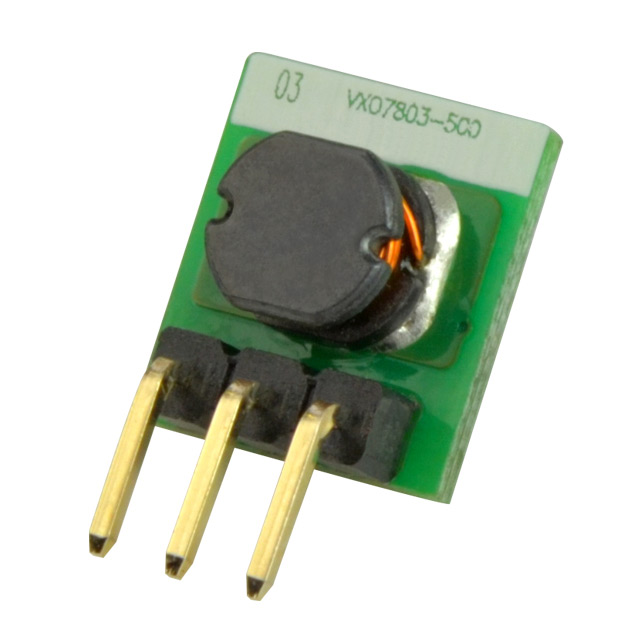

VXO78015-500
CUI Inc.
VXO78015-500-M-TR
CUI Inc.
VXO7803-1000
CUI Inc.
VXO7803-500
CUI Inc.
VXO7803-500-M-TR
CUI Inc.
VXO7805-500
CUI Inc.
VXO7805-500-M-TR
CUI Inc.

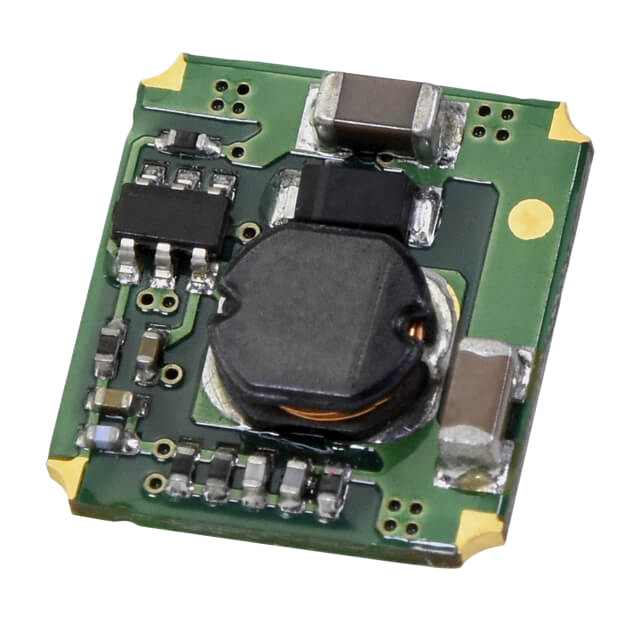

VXO7809-500-M-TR
