WCI2520CP82NGDG

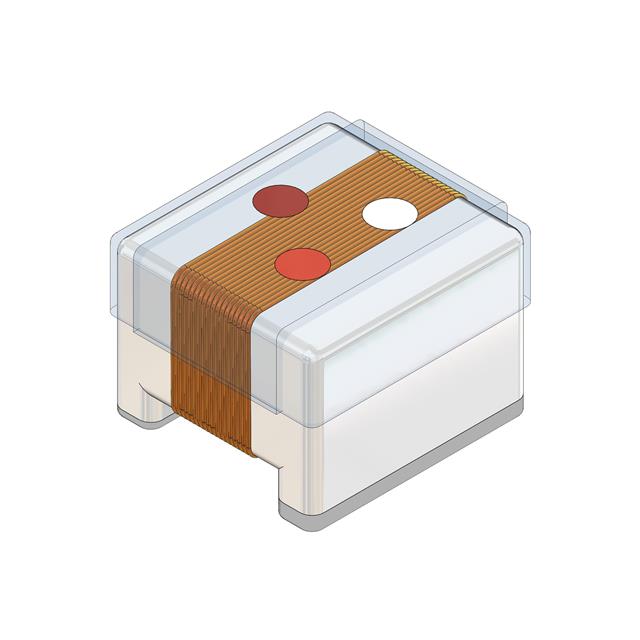

lmages are for reference only.WCI2520CP82NGDG
CHIP IND 2520,82NH,G,60Q,1.0A,2K
Datasheet1008 (2520 Metric)
28,962 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
82 nH Unshielded Wirewound Inductor 1 A 220mOhm Max 1008 (2520 Metric)
WCI2520CP82NGDG
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | INPAQ Technology Co., Ltd |
| Series | WCI2520CP |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 82 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 220mOhm Max |
| Q @ Freq | 60 @ 350MHz |
| Frequency - Self Resonant | 1GHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 125°C |
| Inductance Frequency - Test | 50 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Height - Seated (Max) | 0.080" (2.03mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | WCI2520CP47NJDG | WCI2520CP56NGDG | WCI2520CP68NGDG | WCI2520CPR10GDG |
| Manufacturer | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CHIP IND 2520,47NH,J,65Q,1.0A,2K | CHIP IND 2520,56NH,G,65Q,1.0A,2K | CHIP IND 2520,68NH,G,65Q,1.0A,2K | CHIP IND 2520,100NH,G,60Q,0.65A, |
| Series | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) |
