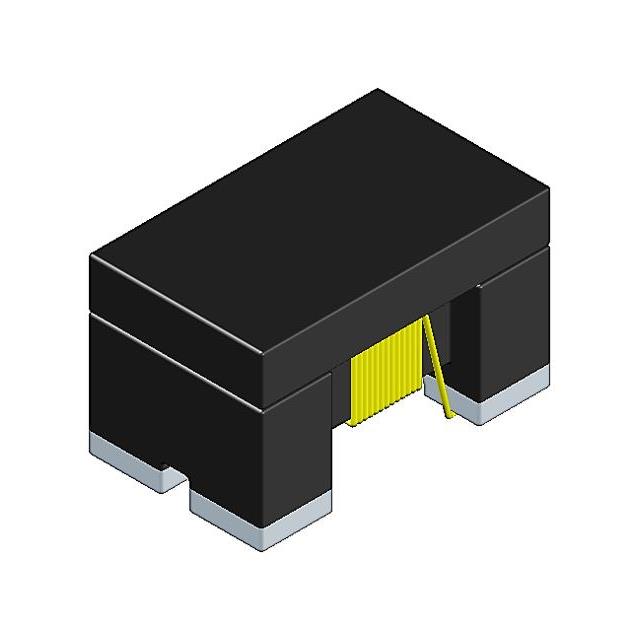

2 Line Common Mode Choke Surface Mount 160 Ohms @ 100 MHz 350mA DCR 350mOhm
WCM 2012F2SF-161T03
| Category | Filters - Common Mode Chokes - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | WCM2012F2SF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 350mA |
| DC Resistance (DCR) (Max) | 350mOhm |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height (Max) | 0.055" (1.40mm) |
| Package / Case | 0805 (2012 Metric), 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 160 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | WCM 2012F2SF-121T04 | WCM 2012F2SF-361T03 | WCM 2012F2SF-670T04 | WCM 2012F2SF-801-N |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 2 LINE COMMON MODE CHOKE SURFACE | 2 LINE COMMON MODE CHOKE SURFACE | 2 LINE COMMON MODE CHOKE SURFACE | 2 LINE COMMON MODE CHOKE SURFACE |
| Series | WCM2012F2SF | WCM2012F2SF | WCM2012F2SF | WCM2012F2SF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
