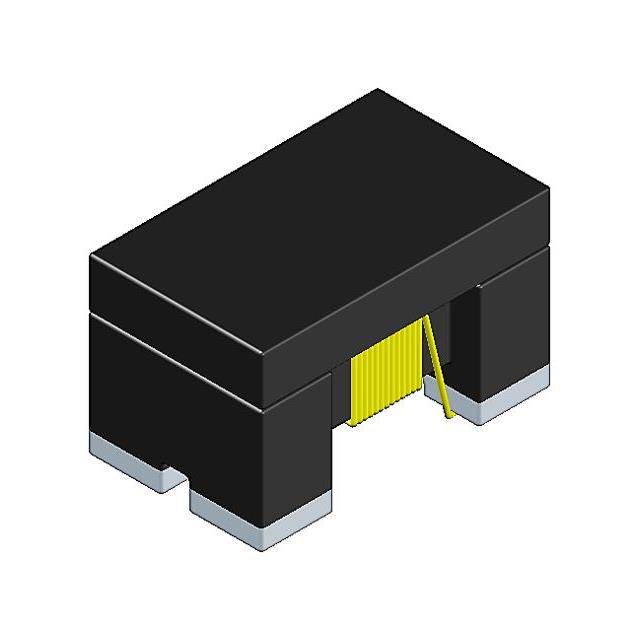

2 Line Common Mode Choke Surface Mount 600 Ohms @ 100 MHz 2.5A DCR 60mOhm
WCM 4532F2SF-601T25-HI
| Category | Filters - Common Mode Chokes - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | WCM4532F2SF-HI |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | - |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 2.5A |
| DC Resistance (DCR) (Max) | 60mOhm |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height (Max) | 0.118" (3.00mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 600 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | WCM 4532F2SF-142T20-HI | WCM 4532F2SF-231T35-HI | WCM 4532F2SF-421T32-HI | WCM 4532F2SF-900T40-HI |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 2.0A LINE COMMON MODE CHOKE SUR | 2 LINE COMMON MODE CHOKE SURFACE | 2 LINE COMMON MODE CHOKE SURFACE | 2 LINE COMMON MODE CHOKE SURFACE |
| Series | WCM4532F2SF | WCM4532F2SF-HI | WCM4532F2SF-HI | WCM4532F2SF-HI |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
