WCM2012F2SV-261T03

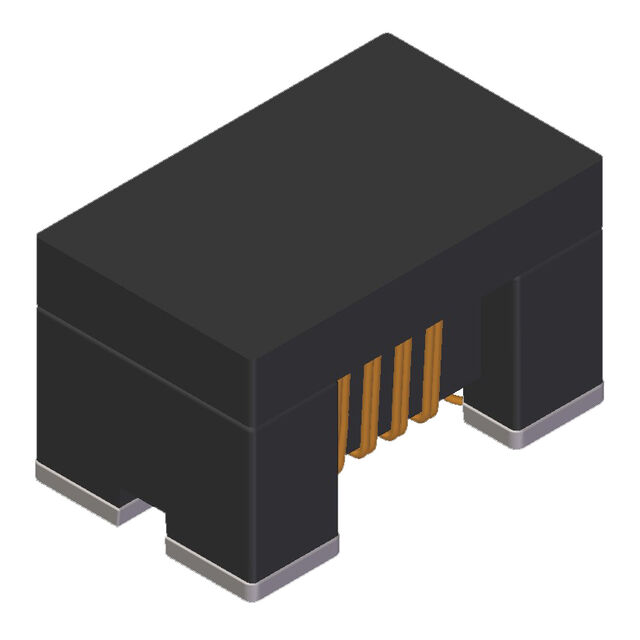

lmages are for reference only.WCM2012F2SV-261T03
CMC 2LN 260OHM 400MOHM 300MA AE
Datasheet0805 (2012 Metric), 4 PC Pad
67,831 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 260 Ohms @ 100 MHz 300mA DCR 400mOhm
WCM2012F2SV-261T03
| Category | Filters - Common Mode Chokes - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | WCM2012F2SV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | - |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 300mA |
| DC Resistance (DCR) (Max) | 400mOhm |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height (Max) | 0.055" (1.40mm) |
| Package / Case | 0805 (2012 Metric), 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 260 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | WCM2012F2SV-121T03 | WCM2012F2SV-161T03 | WCM2012F2SV-181T03 | WCM2012F2SV-201T03 |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 2LN 120OHM 300MOHM 400MA AE | 2 LINE COMMON MODE CHOKE SURFACE | CMC 2LN 180OHM 350MOHM 350MA AE | CMC 2LN 200OHM 400MOHM 300MA AE |
| Series | - | WCM2012F2SV | WCM2012F2SV | WCM2012F2SV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
