WIP201610S-R22MLDG

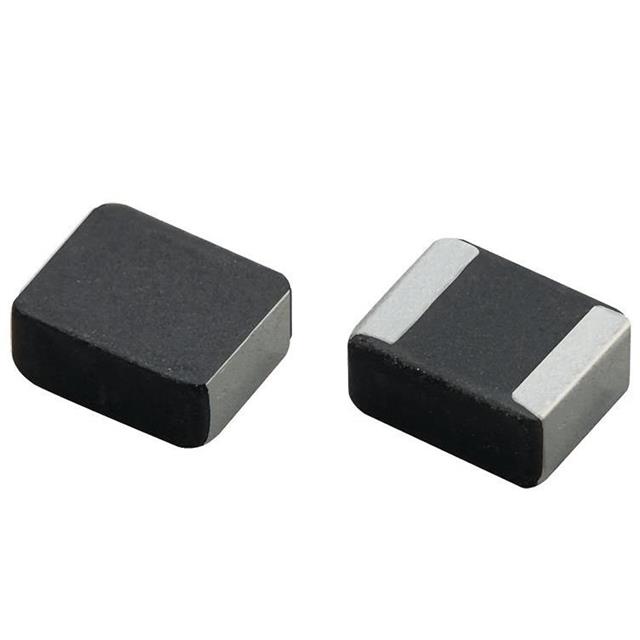

lmages are for reference only.WIP201610S-R22MLDG
POWER INDUCTOR 2016 0.22UH 20% D
Datasheet0806 (2016 Metric)
36,400 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
220 nH Shielded Wirewound Inductor 6 A 19mOhm Max 0806 (2016 Metric)
WIP201610S-R22MLDG
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | INPAQ Technology Co., Ltd |
| Series | WIP201610S L |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Iron Powder |
| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6 A |
| Current - Saturation (Isat) | 7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 19mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 120MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | WIP201610S-R10MLDG | WIP201610S-R24MLDG | WIP201610S-R33MLDG | WIP201610S-R47MLDG |
| Manufacturer | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | POWER INDUCTOR 2016 0.1UH 20% DC | POWER INDUCTOR 2016 0.24UH 20% D | POWER INDUCTOR 2016 0.33UH 20% D | POWER INDUCTOR 2016 0.47UH 20% D |
| Series | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) |
