WL1608FSR39KTFM01

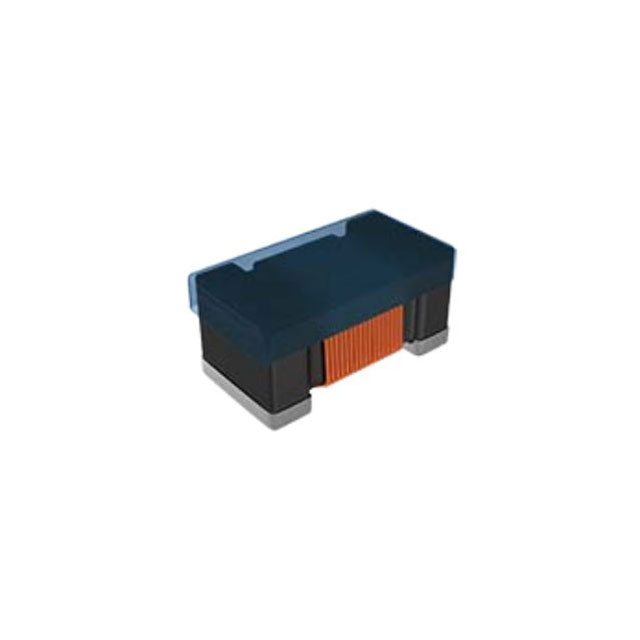

lmages are for reference only.WL1608FSR39KTFM01
FIXED IND 390NH 620MA 280MOHM SM
Datasheet0603 (1608 Metric)
49,976 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
390 nH Unshielded Drum Core, Wirewound Inductor 620 mA 280mOhm Max 0603 (1608 Metric)
WL1608FSR39KTFM01
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. |
| Series | WL-FS |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 390 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 620 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 280mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 570MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.067" L x 0.037" W (1.70mm x 0.95mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | WL1608FSR39JTFM01 | WL1608FSR39KTFM01 | WL1608FSR39MTFM01 | WL1608FS15NJTFM01 |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. |
| RoHS Status | ||||
| Description | FIXED IND 390NH 620MA 280MOHM SM | FIXED IND 390NH 620MA 280MOHM SM | FIXED IND 390NH 620MA 280MOHM SM | FIXED IND 15NH 2.2A 25 MOHM SMD |
| Series | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
