Product CatalogPart Number

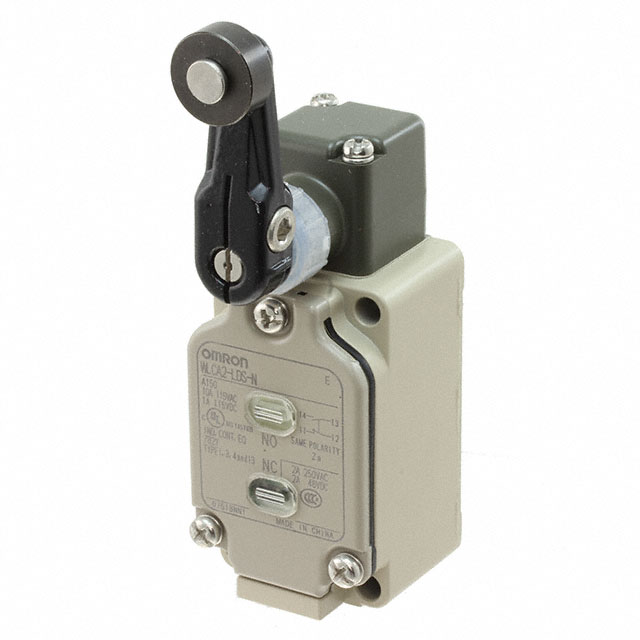

WLCA2-LDS-N
Manufacturer
Omron Automation and SafetyDescription
SWITCH SNAP ACTION SPDT 10A 115V
Datasheet
DatasheetPackage
-
In Stock
45,829 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
WLCA2-LDS-N
WLCA2-LDS-N
lmages are for reference only.Payment Methods
Delivery Services
Switch SPDT (DB/DM) Chassis Mount
Quick Inquiry
WLCA2-LDS-N
Specifications
| Category | Switches - Limit Switches - |
| Manufacturer | Omron Automation and Safety |
| Series | WL-N |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | WLCA2 |
| Circuit | SPDT (DB/DM) |
| Switch Function | On-Mom |
| Current Rating (Amps) | 10A (AC), 6A (DC) |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 24 V |
| Actuator Type | Side Rotary, Roller |
| Mounting Type | Chassis Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Electrical Life | 750,000 Cycles |
| Mechanical Life | 15,000,000 Cycles |
| Features | Spatter Prevention, Status Indicator |
| Operating Force | 1360gf |
| Release Force | 120gf |
| Operating Position | - |
| Pretravel | 15° |
| Differential Travel | 12° |
| Overtravel | 70° |
| Operating Temperature | -10°C ~ 80°C |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

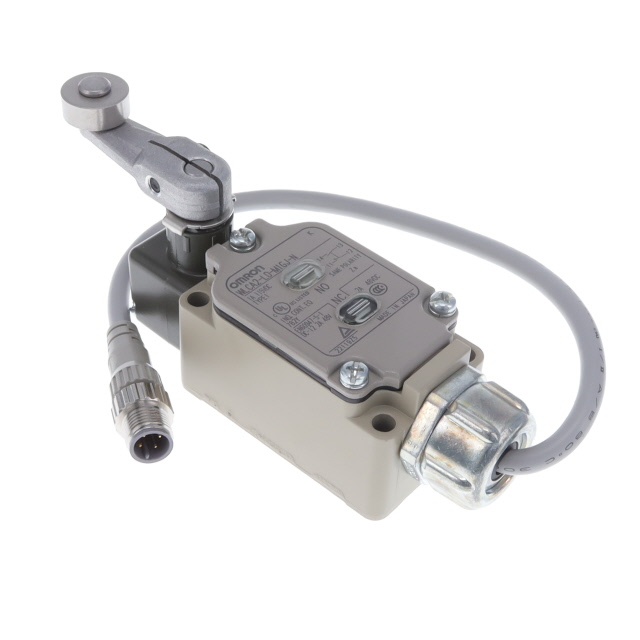

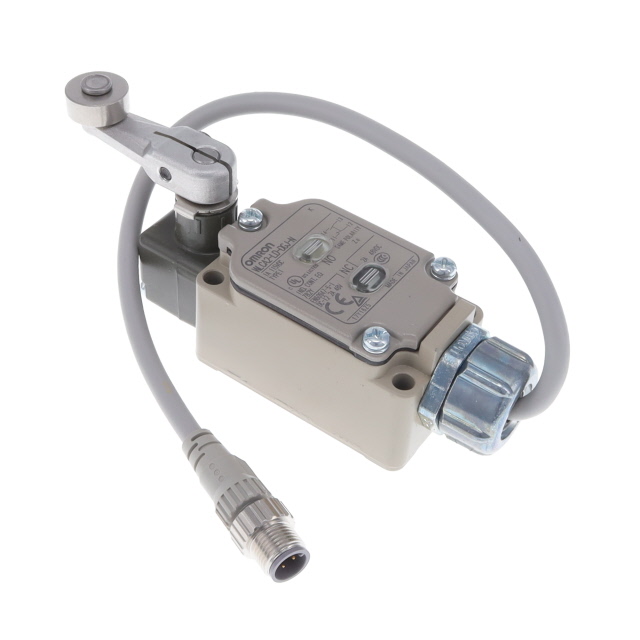

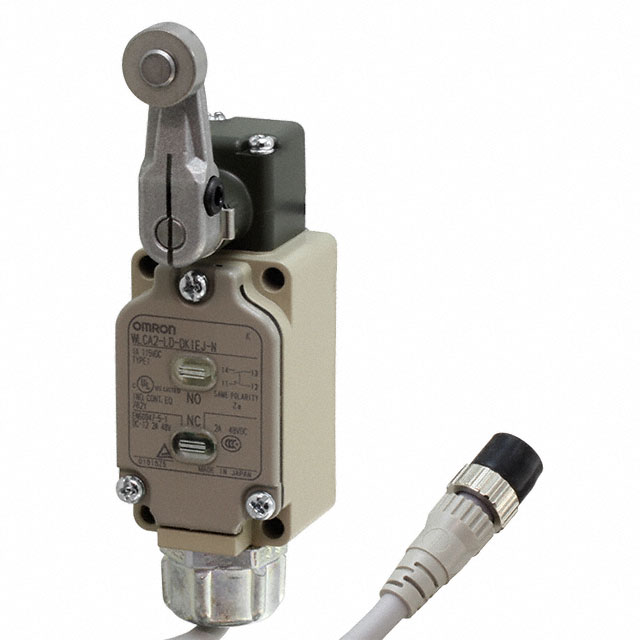

| Part Number | WLCA2-LD-AS-N | WLCA2-LD-DGJ-N | WLCA2-LD-DK1EJ-N | WLCA2-LD-M1GJ-N |
| Manufacturer | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS non-compliant | RoHS Compliant |
| Description | SWITCH SNAP ACTION SPDT 10A 115V | SWITCH SNAP ACTION SPDT 10A 125V | SWITCH LIMIT SPDT 10A 125V | SWITCH SNAP ACTION SPDT 10A 125V |
| Series | WL-N | WL-N | WL-N | WL-N |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
WLCA2-139-N 2M
Omron Automation and Safety
WLCA2-139LD2-N 5M
Omron Automation and Safety

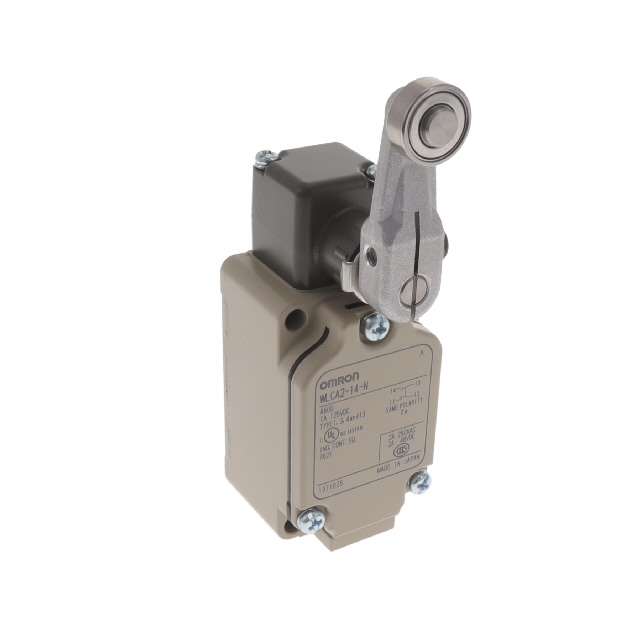

WLCA2-14-N
Omron Automation and Safety

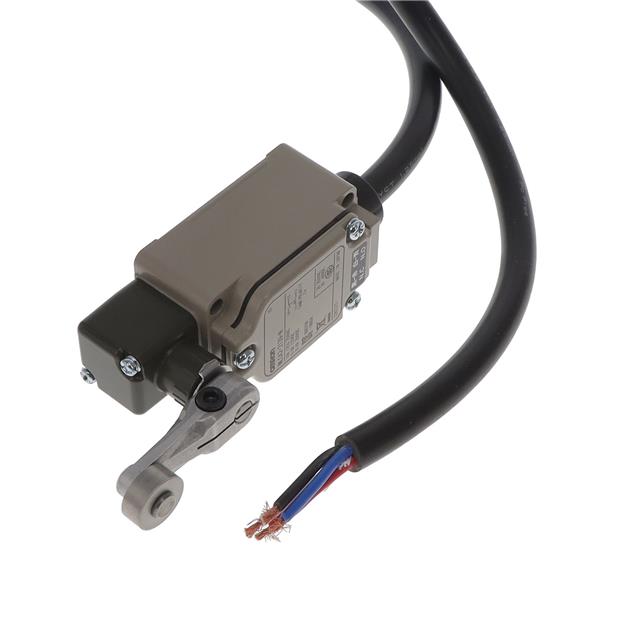

WLCA2-2139-N 1M
Omron Automation and Safety
WLCA2-2139-N 5M
Omron Automation and Safety
WLCA2-2139LD3-N 5M
Omron Automation and Safety
WLCA2-214-N
Omron Automation and Safety
WLCA2-255-N
Omron Automation and Safety

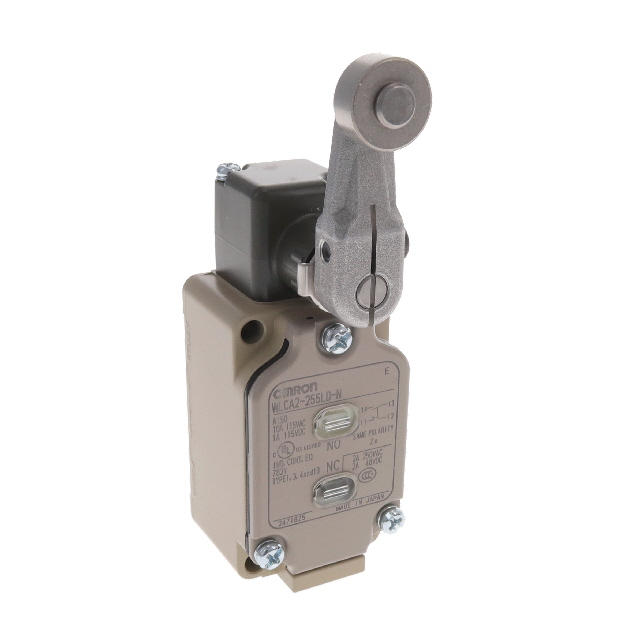

WLCA2-255LD-N
Omron Automation and Safety
WLCA2-26N-N
Omron Automation and Safety

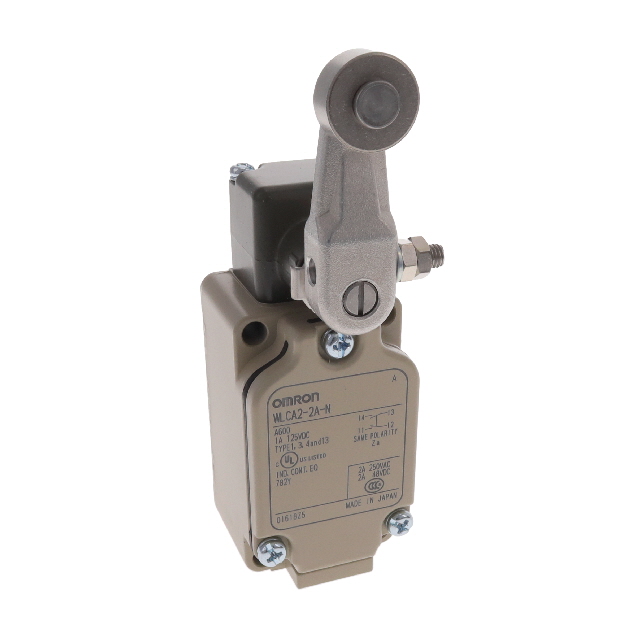

WLCA2-2A-N
Omron Automation and Safety
WLCA2-2G-N
Omron Automation and Safety

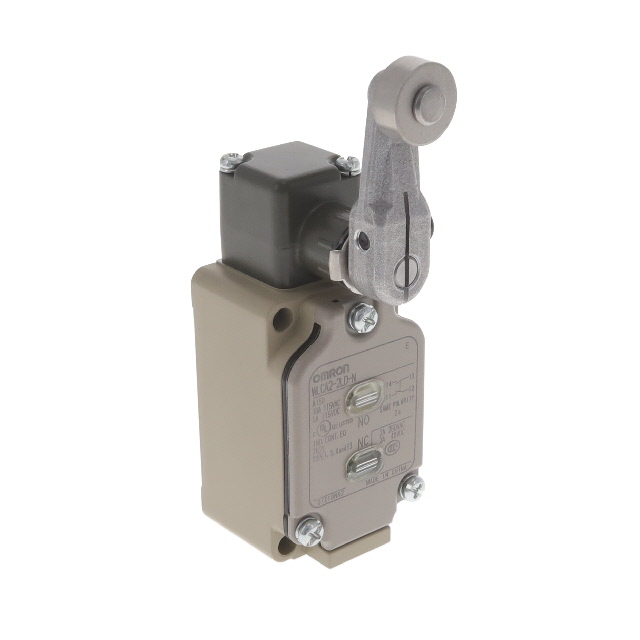

WLCA2-2LD-N
Omron Automation and Safety

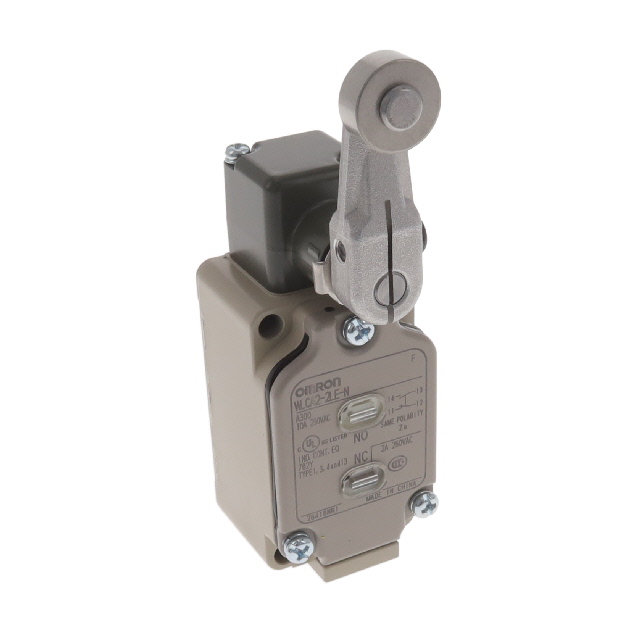

WLCA2-2LE-N
