WLCM1005Z0B3N3TB

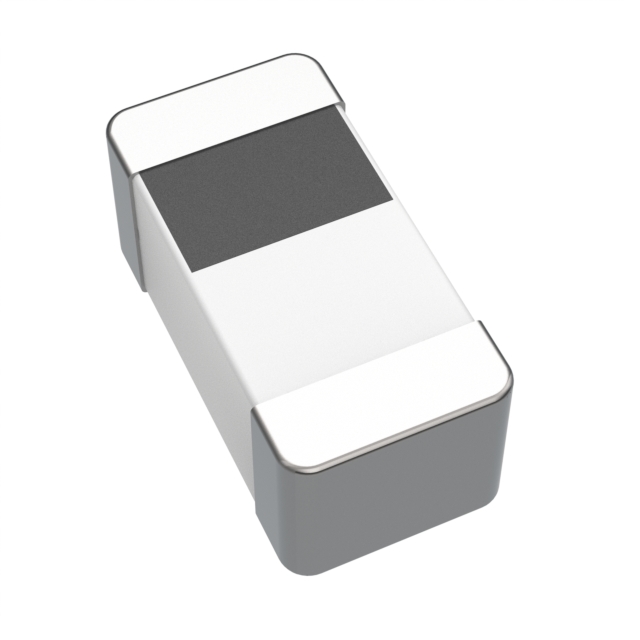

lmages are for reference only.WLCM1005Z0B3N3TB
INDUCTOR FIXED 3.3NH 0402
Datasheet0402 (1005 Metric)
52,630 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.3 nH Unshielded Multilayer Inductor 800 mA 160mOhm Max 0402 (1005 Metric)
WLCM1005Z0B3N3TB
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Walsin Technology Corporation |
| Series | CM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Ceramic |
| Inductance | 3.3 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 800 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 160mOhm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 6GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | WLCM1005Z0B3N0TB | WLCM1005Z0B3N6TB | WLCM1005Z0B3N6TB | WLCM1005Z0B3N9TB |
| Manufacturer | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INDUCTOR FIXED 3.0NH 0402 | INDUCTOR FIXED 3.6NH 0402 | INDUCTOR FIXED 3.6NH 0402 | INDUCTOR FIXED 3.9NH 0402 |
| Series | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
