WNSC04650T6J

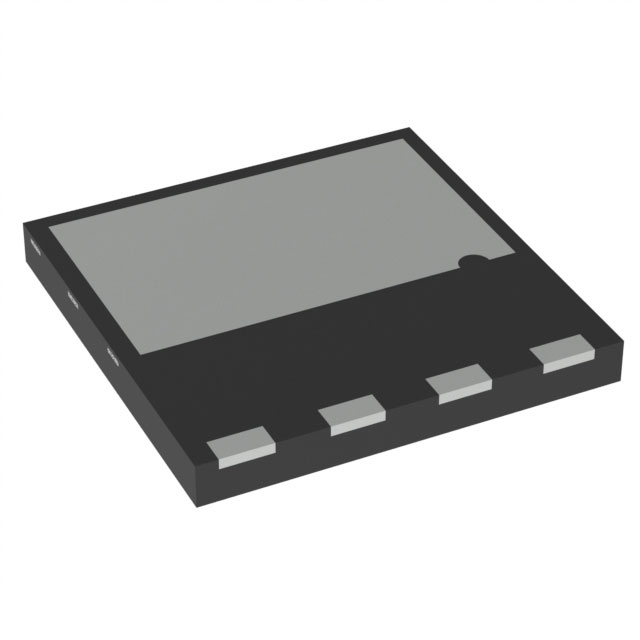

lmages are for reference only.WNSC04650T6J
DIODE SIL CARBIDE 650V 4A 5DFN
Datasheet4-VSFN Exposed Pad
27,737 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 650 V 4A Surface Mount 5-DFN (8x8)
WNSC04650T6J
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | WeEn Semiconductors |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Current - Average Rectified (Io) | 4A |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 4 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 25 µA @ 650 V |
| Capacitance @ Vr, F | 141pF @ 1V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 4-VSFN Exposed Pad |
| Supplier Device Package | 5-DFN (8x8) |
| Operating Temperature - Junction | 175°C (Max) |
| Base Product Number | WNSC0 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |

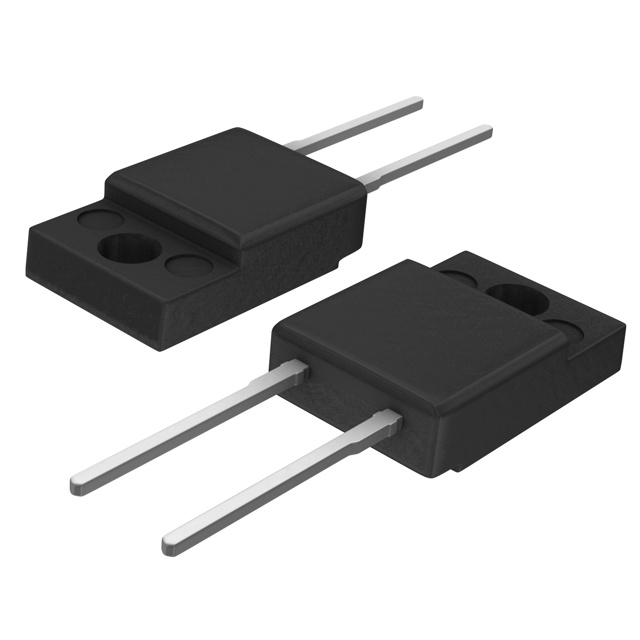

| Part Number | WNB199V5APTSV | WNC3060D45160WQ | WND08P16DJ | WND08P16XQ |
| Manufacturer | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | WNB199V5APTS/NAU000/NO MARK*CHIP | WNC3060D45160W/TO247/STANDARD MA | DIODE GEN PURP 1.6KV 8A DPAK | DIODE GEN PURP 1.6KV 8A TO220F |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
