Product CatalogPart Number
WP113SRDT
Manufacturer
KingbrightDescription

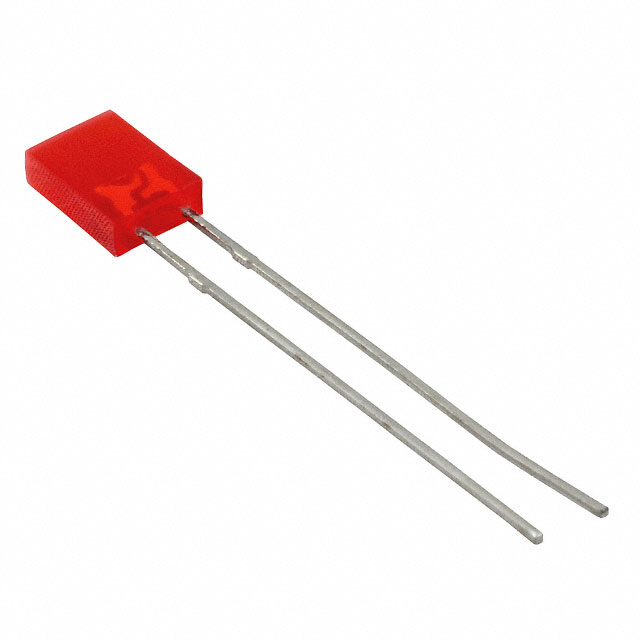

LED RED DIFF RECT 2MMX5MM T/H
Datasheet
DatasheetPackage
Radial
In Stock
80,131 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
WP113SRDT
WP113SRDT
lmages are for reference only.Payment Methods
Delivery Services
Red 640nm LED Indication - Discrete 1.85V Radial
Quick Inquiry
WP113SRDT
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Kingbright |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Color | Red |
| Configuration | Standard |
| Lens Color | Red |
| Lens Transparency | Diffused |
| Millicandela Rating | 20mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.00mm x 2.00mm |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Current - Test | 20mA |
| Viewing Angle | 110° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 640nm |
| Wavelength - Peak | 655nm |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | Rectangular 2mmx5mm |
| Size / Dimension | 5.00mm L x 2.00mm W |
| Height (Max) | 7.00mm |
| Base Product Number | WP113 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

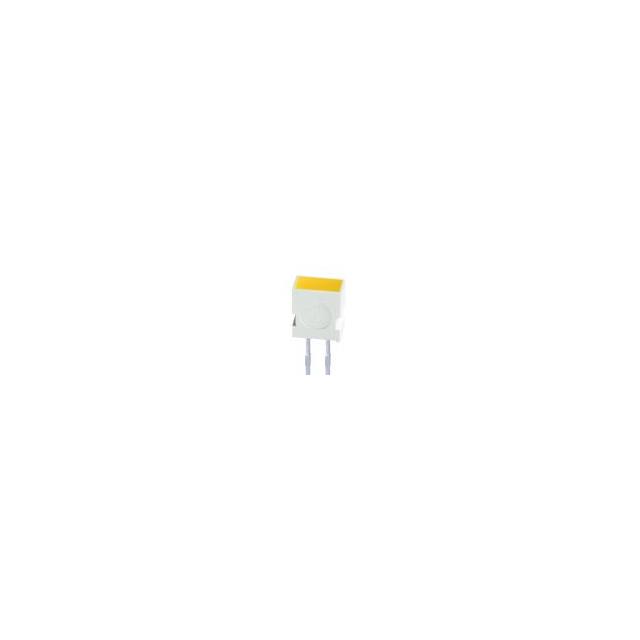

| Part Number | WP113SURDKT | WP113SYDTK | WP1043CGDTK | WP1043SYDTK |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED DIFFUSED RECT 2.5X5MM TH | LED YL DIFFUSED RECT 2.5X5MM T/H | LED GREEN DIFFUSED RADIAL T/H | LED YELLOW DIFFUSED RADIAL T/H |
| Series | Kingbright | Kingbright | Kingbright | Kingbright |
| Packaging | Bulk | Bulk | Bulk | Bulk |
