WR04W4704FTL

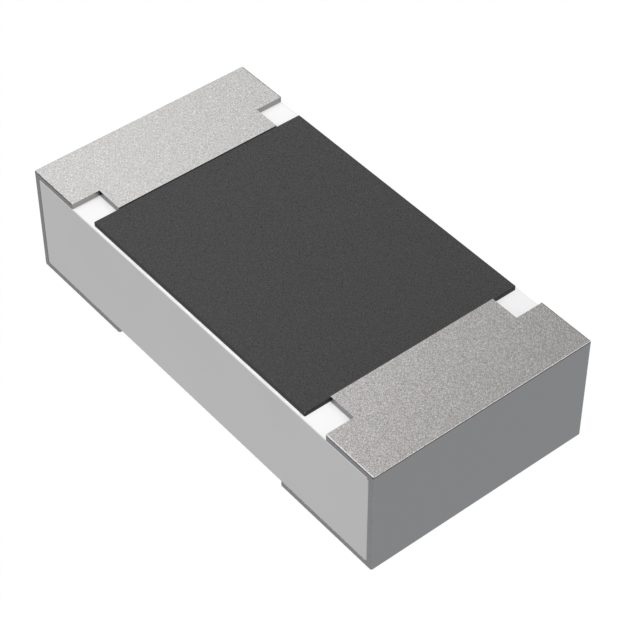

lmages are for reference only.WR04W4704FTL
RES 4.7M OHM 1% 1/16W 0402
Datasheet0402 (1005 Metric)
56,839 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 MOhms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thick Film
WR04W4704FTL
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Walsin Technology Corporation |
| Series | WR |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 4.7 MOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.063W, 1/16W |
| Composition | Thick Film |
| Features | - |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Ratings | - |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.016" (0.40mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | WR04W4704FTR | WR04W4024FTL | WR04W4124FTL | WR04W4224FTL |
| Manufacturer | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 4.7M OHM 1% 0402 | RES 4.02M OHM 1% 1/16W 0402 | RES 4.12M OHM 1% 1/16W 0402 | RES 4.22M OHM 1% 1/16W 0402 |
| Series | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
