WRFI0805-S-R30JT-CT
lmages are for reference only.Payment Methods
Delivery Services

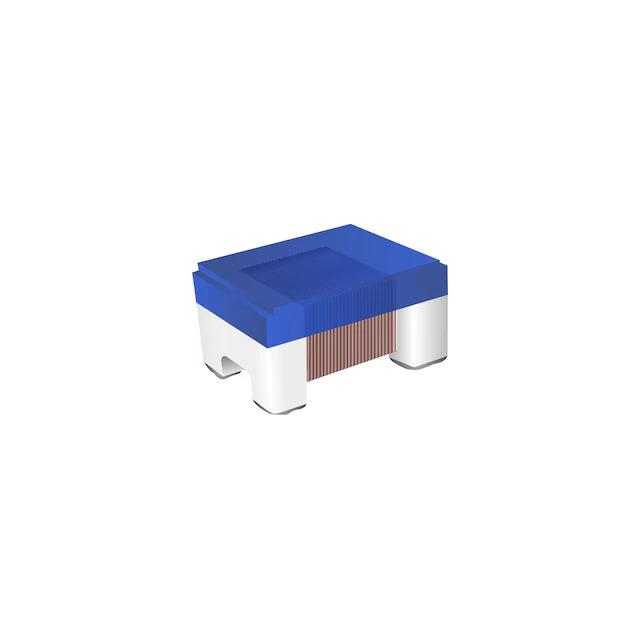

300 nH Wirewound Inductor 330 mA 1.2Ohm 0805 (2012 Metric)
WRFI0805-S-R30JT-CT
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Venkel |
| Series | WRFI |
| Packaging | Strip |
| RoHS Status | RoHS Compliant |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 300 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 330 mA |
| Current - Saturation (Isat) | - |
| Shielding | - |
| DC Resistance (DCR) | 1.2Ohm |
| Q @ Freq | 48 @ 250MHz |
| Frequency - Self Resonant | 620MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.090" L x 0.068" W (2.29mm x 1.73mm) |
| Height - Seated (Max) | 0.060" (1.52mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | WRFI0805-S-R30JT | WRFI0805-S-R33JT | WRFI0805-S-R33JT-CT | WRFI0805-S-R36JT |
| Manufacturer | Venkel | Venkel | Venkel | Venkel |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | Wirewound RF Inductor,0805,300nH | Wirewound RF Inductor,0805,330nH | Wirewound RF Inductor,0805,330nH | Wirewound RF Inductor,0805,360nH |
| Series | Venkel | Venkel | Venkel | Venkel |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Strip | Tape & Reel (TR) |
