Product CatalogPart Number
WSL25128L200JEA18
Manufacturer
Vishay DaleDescription
RES 0.0082 OHM 5% 2W 2512
Datasheet
DatasheetPackage
2512 (6432 Metric)
In Stock
64,287 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
WSL25128L200JEA18
WSL25128L200JEA18

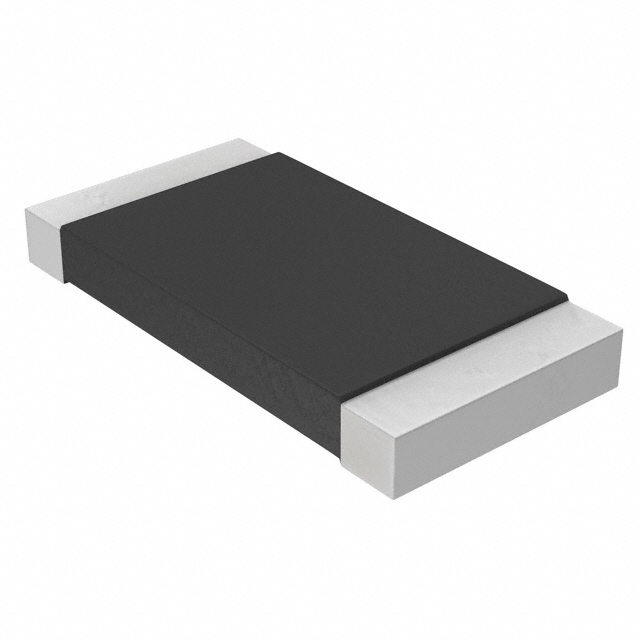

lmages are for reference only.Payment Methods
Delivery Services
8.2 mOhms ±5% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Quick Inquiry
WSL25128L200JEA18
Specifications
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Dale |
| Series | |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Vishay Dale |
| Series | WSL-HP |
| Resistance | 8.2 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 2W |
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±75ppm/°C |
| Operating Temperature | -65°C ~ 170°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.250" L x 0.125" W (6.35mm x 3.18mm) |
| Height - Seated (Max) | 0.035" (0.89mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | WSL25128L200DEA | WSL25128L200FBA | WSL25128L200FEA | WSL25128L200FEA18 |
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 0.0082 OHM 0.5% 1W 2512 | RES 0.0082 OHM 1% 1W 2512 | RES 0.0082 OHM 1% 1W 2512 | RES 0.0082 OHM 1% 2W 2512 |
| Series | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
