WSTC0402RLR005FKR

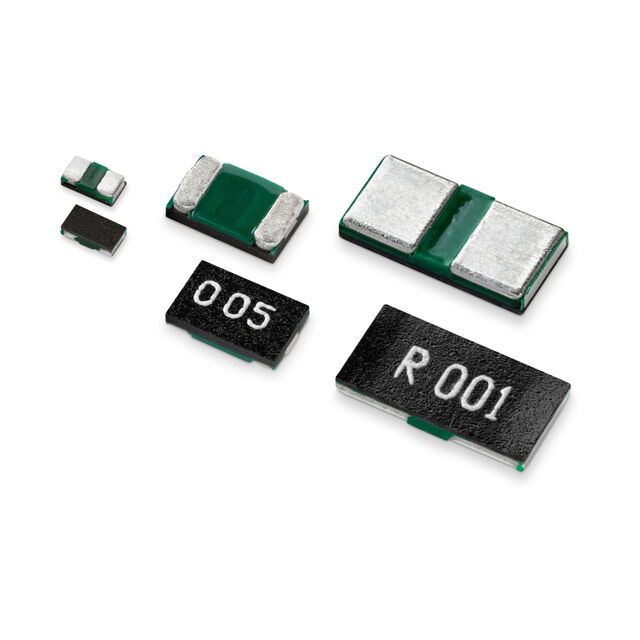

lmages are for reference only.WSTC0402RLR005FKR
2T WSTC0402 0.33W 100PPM 5 MOHM
Datasheet0402 (1005 Metric)
89,896 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5 mOhms ±1% 0.333W, 1/3W Chip Resistor 0402 (1005 Metric) Current Sense, High Voltage Metal Foil
WSTC0402RLR005FKR
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Littelfuse Inc. |
| Series | WSTC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Resistance | 5 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.333W, 1/3W |
| Composition | Metal Foil |
| Features | Current Sense, High Voltage |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Ratings | - |
| Size / Dimension | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Height - Seated (Max) | 0.014" (0.35mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | WSTC0402RLR006FKR | WSTC0402RLR007FKR | WSTC0402RLR008FKR | WSTC0402RLR009FKR |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ||||
| Description | 2T WSTC0402 0.33W 100PPM 6 MOHM | 2T WSTC0402 0.33W 100PPM 7 MOHM | 2T WSTC0402 0.33W 100PPM 8 MOHM | 2T WSTC0402 0.33W 100PPM 9 MOHM |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
