WSTC1206QLR010FNR

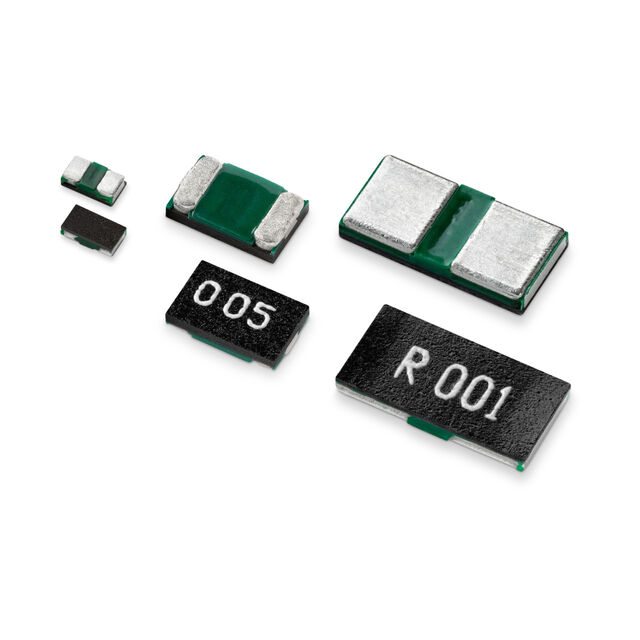

lmages are for reference only.WSTC1206QLR010FNR
2T WSTC1206 1W 50PPM 10 MOHM 1.0
Datasheet1206 (3216 Metric)
71,283 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 mOhms ±1% 1W Chip Resistor 1206 (3216 Metric) Current Sense, High Voltage Metal Foil
WSTC1206QLR010FNR
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Littelfuse Inc. |
| Series | WSTC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Resistance | 10 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 1W |
| Composition | Metal Foil |
| Features | Current Sense, High Voltage |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | - |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | WSTC1206QLR005FNR | WSTC1206QLR006FNR | WSTC1206QLR007FNR | WSTC1206QLR008FNR |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ||||
| Description | 2T WSTC1206 1W 50PPM 5 MOHM 1.0% | 2T WSTC1206 1W 50PPM 6 MOHM 1.0% | 2T WSTC1206 1W 50PPM 7 MOHM 1.0% | 2T WSTC1206 1W 50PPM 8 MOHM 1.0% |
| Series | Littelfuse Inc. | Littelfuse Inc. | ||
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
