Product CatalogPart Number
WW3FB866R
Manufacturer
Stackpole Electronics IncDescription
RES 866 OHM 1% 3W AXIAL
Datasheet
DatasheetPackage
Axial
In Stock
95,785 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
WW3FB866R
WW3FB866R

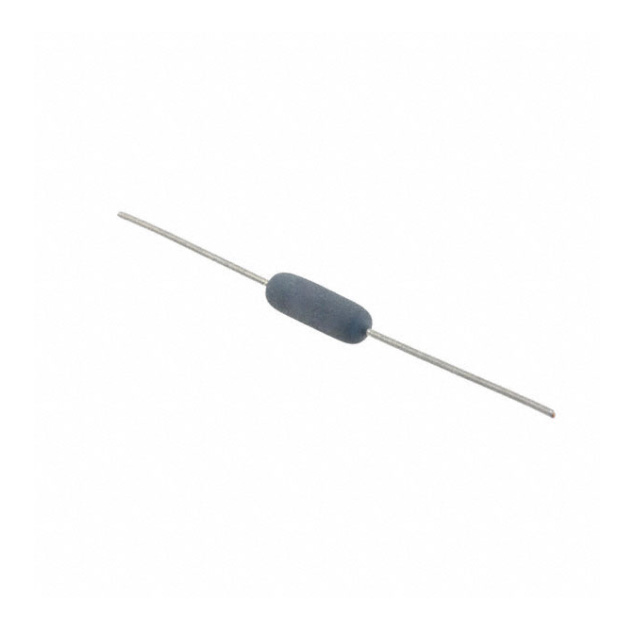

lmages are for reference only.Payment Methods
Delivery Services
866 Ohms ±1% 3W Through Hole Resistor Axial Moisture Resistant Wirewound
Quick Inquiry
WW3FB866R
Specifications
| Category | Resistors - Through Hole Resistors - |
| Manufacturer | Stackpole Electronics Inc |
| Series | WW |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Resistance | 866 Ohms |
| Tolerance | ±1% |
| Power (Watts) | 3W |
| Composition | Wirewound |
| Features | Moisture Resistant |
| Temperature Coefficient | ±20ppm/°C |
| Operating Temperature | -55°C ~ 350°C |
| Package / Case | Axial |
| Supplier Device Package | Axial |
| Size / Dimension | 0.187" Dia x 0.560" L (4.75mm x 14.22mm) |
| Height - Seated (Max) | - |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | WW3FB806R | WW3FB820R | WW3FB82R0 | WW3FB82R5 |
| Manufacturer | Stackpole Electronics Inc | Stackpole Electronics Inc | Stackpole Electronics Inc | Stackpole Electronics Inc |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 806 OHM 1% 3W AXIAL | RES 820 OHM 1% 3W AXIAL | RES 82 OHM 1% 3W AXIAL | RES 82.5 OHM 1% 3W AXIAL |
| Series | Stackpole Electronics Inc | Stackpole Electronics Inc | Stackpole Electronics Inc | Stackpole Electronics Inc |
| Packaging | Bulk | Bulk | Bulk | Bulk |
