Product CatalogPart Number
XAUR20C
Manufacturer
SunLEDDescription
DISPLAY 16SEG 0.8" SGL RED 18DIP
Datasheet
DatasheetPackage
18-DIP (0.600", 15.24mm)
In Stock
11,014 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XAUR20C
XAUR20C
lmages are for reference only.Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 16-Segment, Alphanumeric 1 Character Common Cathode 1.9V 10mA 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) 18-DIP (0.600", 15.24mm)
Quick Inquiry
XAUR20C
Specifications
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | SunLED |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) |
| Digit/Alpha Size | 0.80" (20.32mm) |
| Display Type | 16-Segment, Alphanumeric |
| Common Pin | Common Cathode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Current - Test | 10mA |
| Millicandela Rating | 2mcd |
| Wavelength - Peak | 627nm |
| Power Dissipation (Max) | 75mW |
| Package / Case | 18-DIP (0.600", 15.24mm) |
| Base Product Number | XAUR20 |
| Display Format | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

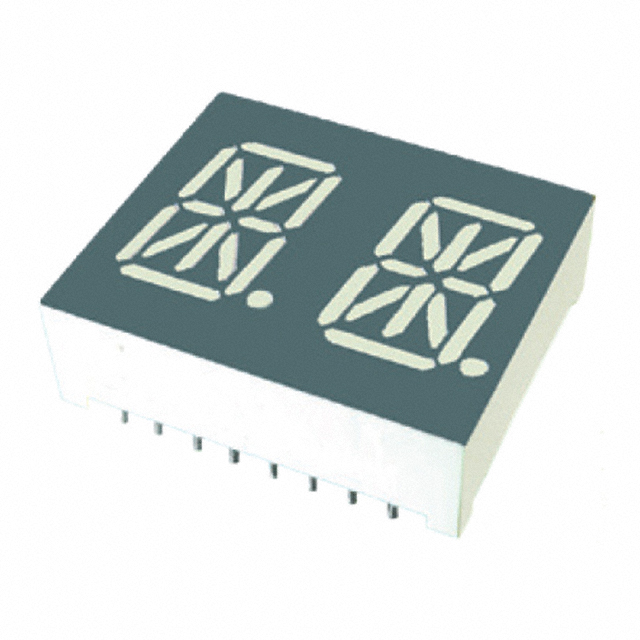

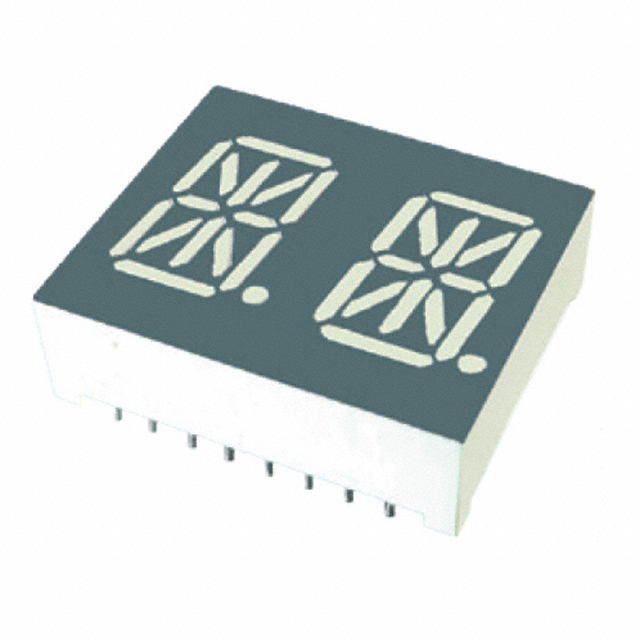

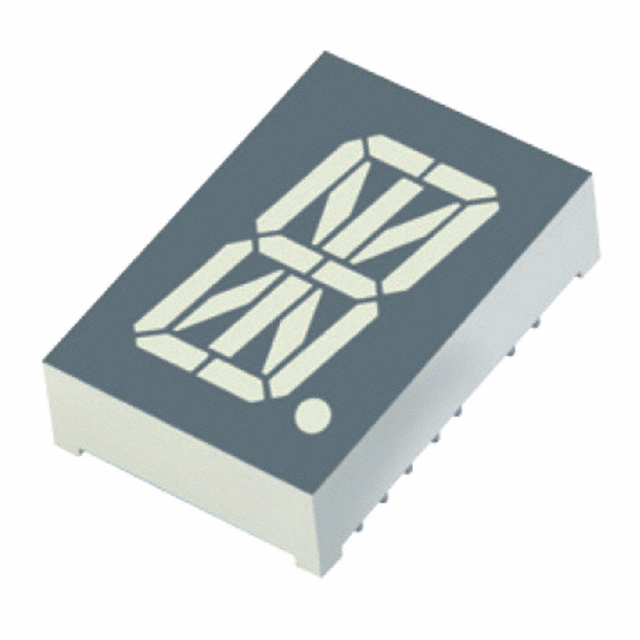

| Part Number | XAUR14A2 | XAUR14C2 | XAUR20A | XZFMOK05C2 |
| Manufacturer | SunLED | SunLED | SunLED | SunLED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISP 14-SEG 0.54" DBL RED 18DIP | DISP 14SEG 0.54" DBL RED 18DIP | DISPLAY 16SEG 0.8" SGL RED 18DIP | DISPLAY 7-SEG 0.2" DBL ORG 20SMD |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR) |
