XC6209F242DR-G
lmages are for reference only.XC6209F242DR-G
IC REG LINEAR 2.4V 300MA 6USPB
Datasheet6-WFDFN Exposed Pad
45,657 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 6-USPB (1.8x2)
XC6209F242DR-G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Torex Semiconductor Ltd |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 2.4V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.31V @ 100mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 50 µA |
| PSRR | 70dB (10kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-USPB (1.8x2) |
| Base Product Number | XC6209 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | XC6209F202DR-G | XC6209F202MR-G | XC6209F202PR-G | XC6209F20ADR-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

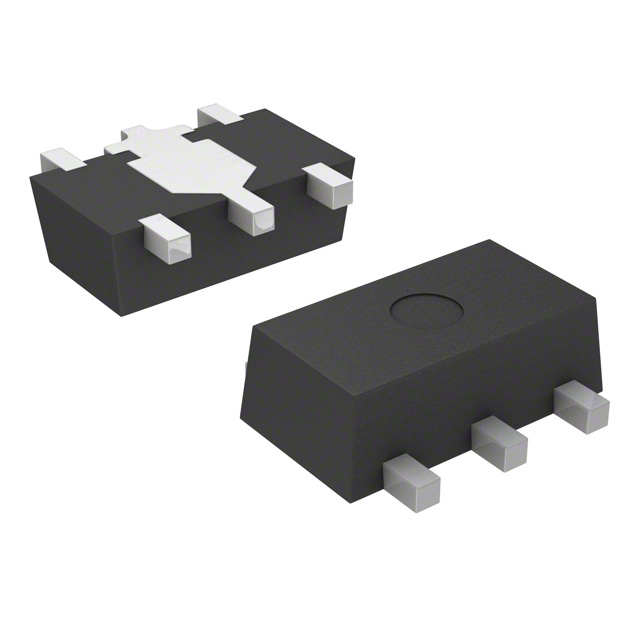

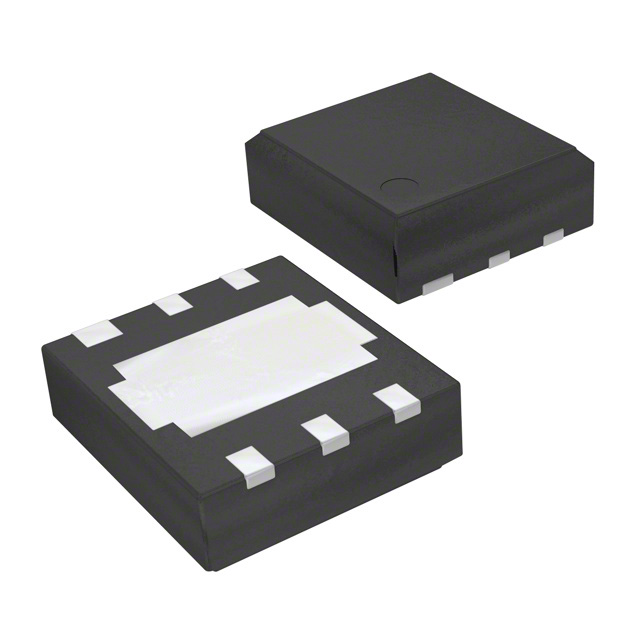

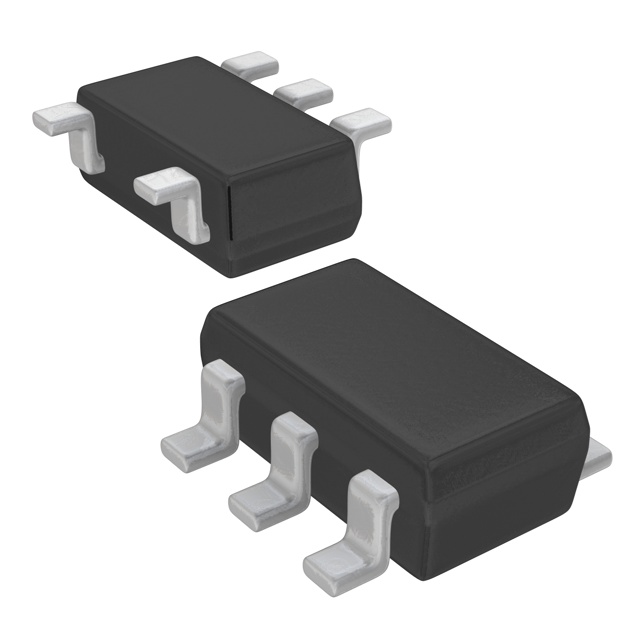

| Description | IC REG LINEAR 2V 300MA 6USPB | IC REG LINEAR 2V 300MA SOT25 | IC REG LINEAR 2V 300MA SOT89-5 | IC REG LINEAR 2.05V 300MA 6USPB |
| Series | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
