XC6216D312JR-G
lmages are for reference only.XC6216D312JR-G
IC REG LINEAR 3.1V 150MA TO252
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
74,746 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA TO-252
XC6216D312JR-G
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Torex Semiconductor Ltd |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 3.1V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.7V @ 100mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 9 µA |
| PSRR | 30dB (1kHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252 |
| Base Product Number | XC6216 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | XC6216D302FR-G | XC6216D302JR-G | XC6216D302MR-G | XC6216D302PR-G |
| Manufacturer | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

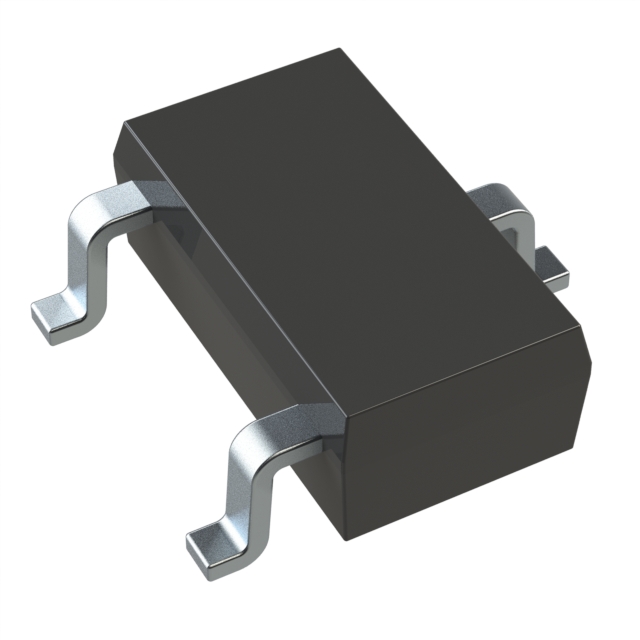

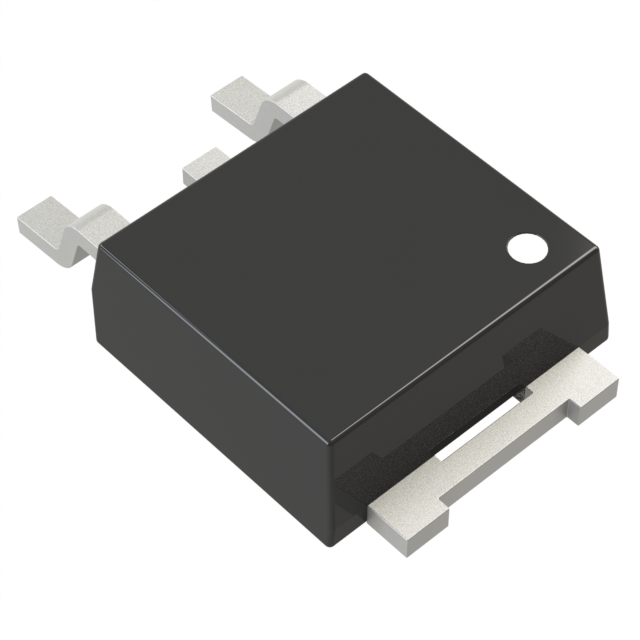

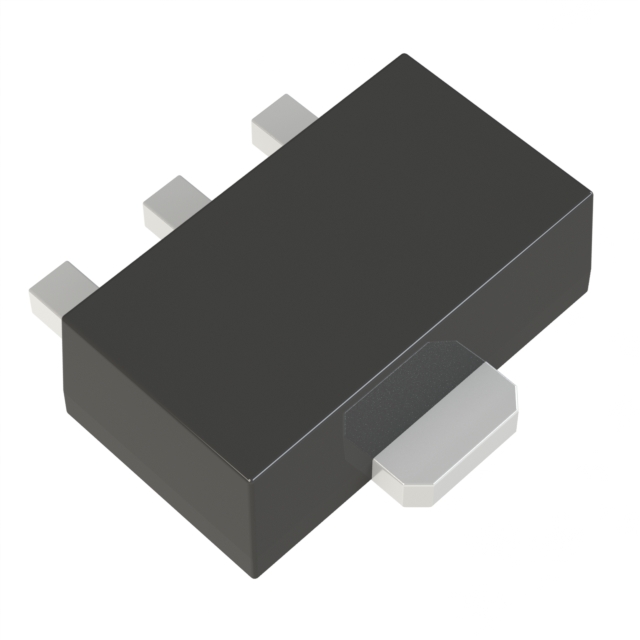

| Description | IC REG LINEAR 3V 150MA SOT223 | IC REG LINEAR 3V 150MA TO252 | IC REG LINEAR 3V 150MA SOT23 | IC REG LINEAR 3V 150MA SOT89 |
| Series | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd | Torex Semiconductor Ltd |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
